Hand made bikes and parts, from Yorkshire, UK.

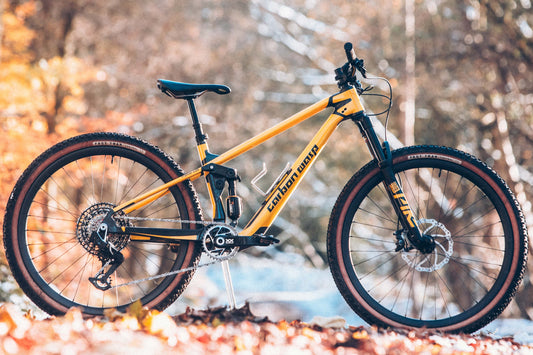

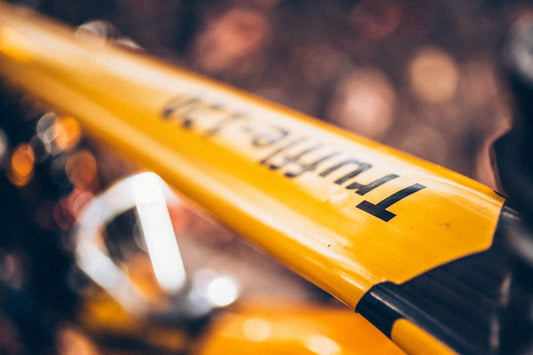

The Carbon Wasp ‘Truffle’, a 29er trail bike from Yorkshire.

Our new full suspension frame is designed to be built into a bike for all occasions. With 130mm of plush and progressive rear travel, combined with a strong and stiff carbon frame to get you efficiently to the top of the trails so you can get rowdy on the way back down.

All our frames are hand made in our workshop in Leeds, UK, using the finest pre-preg carbon fibre, moulded using our unique tooling system.



Featuring:

  • BSA threaded bottom bracket - not a sniff of press-fit anywhere...

  • 30.9mm internal seatpost - to fit most common dropper posts

  • Boost 148 rear dropouts - so you’re sure to be bang on trend

  • Integrated headset cups - for clean looks and lower stack options

  • Full internal cable routing - protecting cables from the elements [our new ‘Swearbox’ routing system makes installation a breeze]

  • Integrated chainstay protector and top mount chain guide - for silent and hassle free chain running

  • Internal downtube lunchbox storage - so you’re never more than an arm’s length from a pork pie* [*or other savoury snack]

  • Available in Wasp-Yellow paint scheme (custom paint available at extra cost, ask for details)

All this available now for £2,950 for frame and shock [Cane Creek air or coil rear shock]

** 650b version coming soon **.

Geometry

Frame Pic 3.png

[S] [M] [L]

Rear Travel (mm's) 130.0 130.0 130.0

Head Angle (deg's) 65.0 65.0 65.0

Seat Angle (deg's) 75.5 75.5 75.5

Reach (mm's) 425.0 450.0 475.0

Stack (mm's) 630.0 630.0 630.0

BB Drop (mm's) 22.5 22.5 22.5

Chainstay (short) (mm's) 425.0 425.0

Chainstay (long) (mm's) 445.0 445.0

Headset (top): IS 42 28.6

Headset (bottom): IS 52 40.0

Seat Post: 30.9mm

Seat Clamp: 34.9mm

Bottom Bracket: BSA Threaded (73mm)

Rear Wheel: Boost 148mm x 12m3
