Compound-150

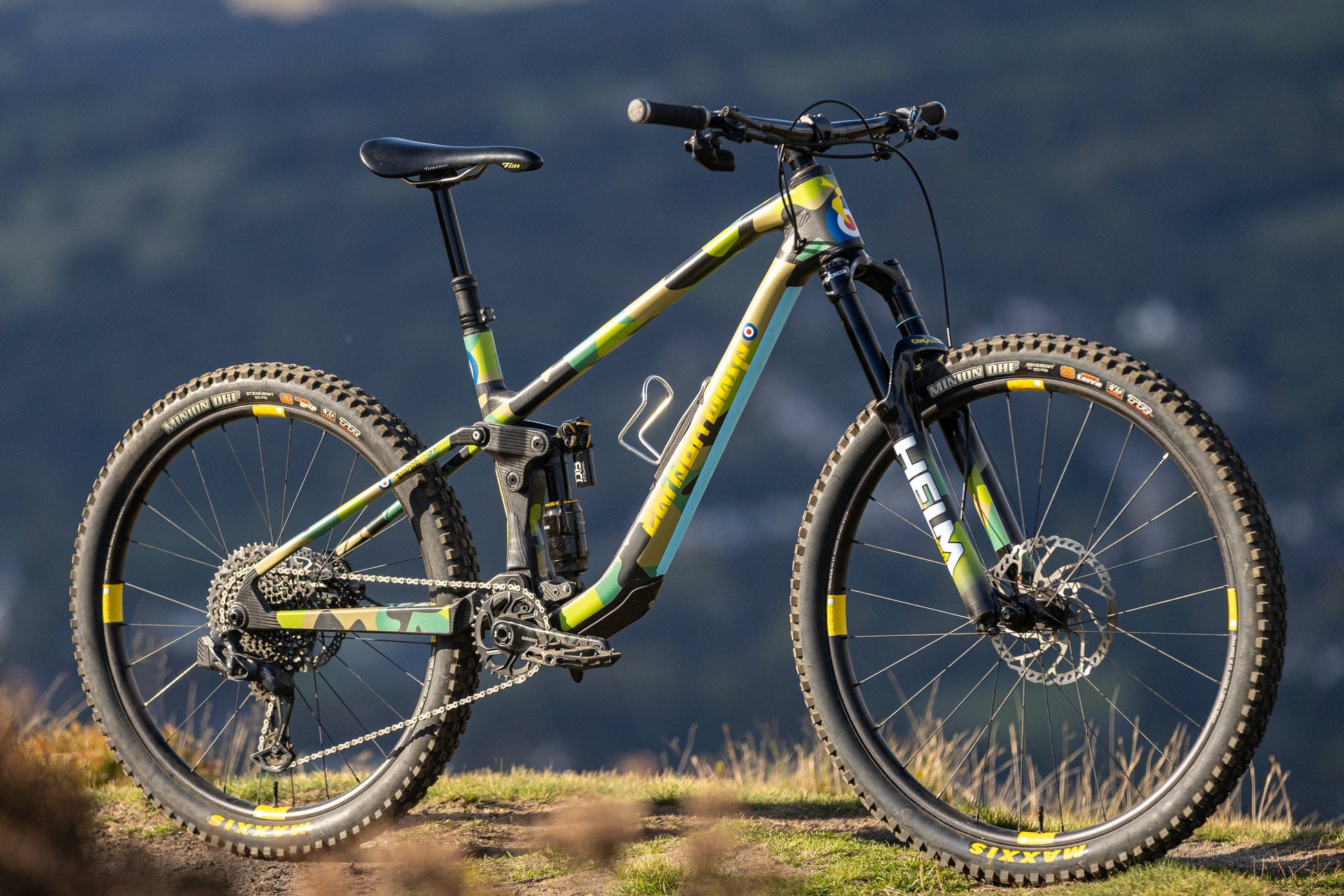

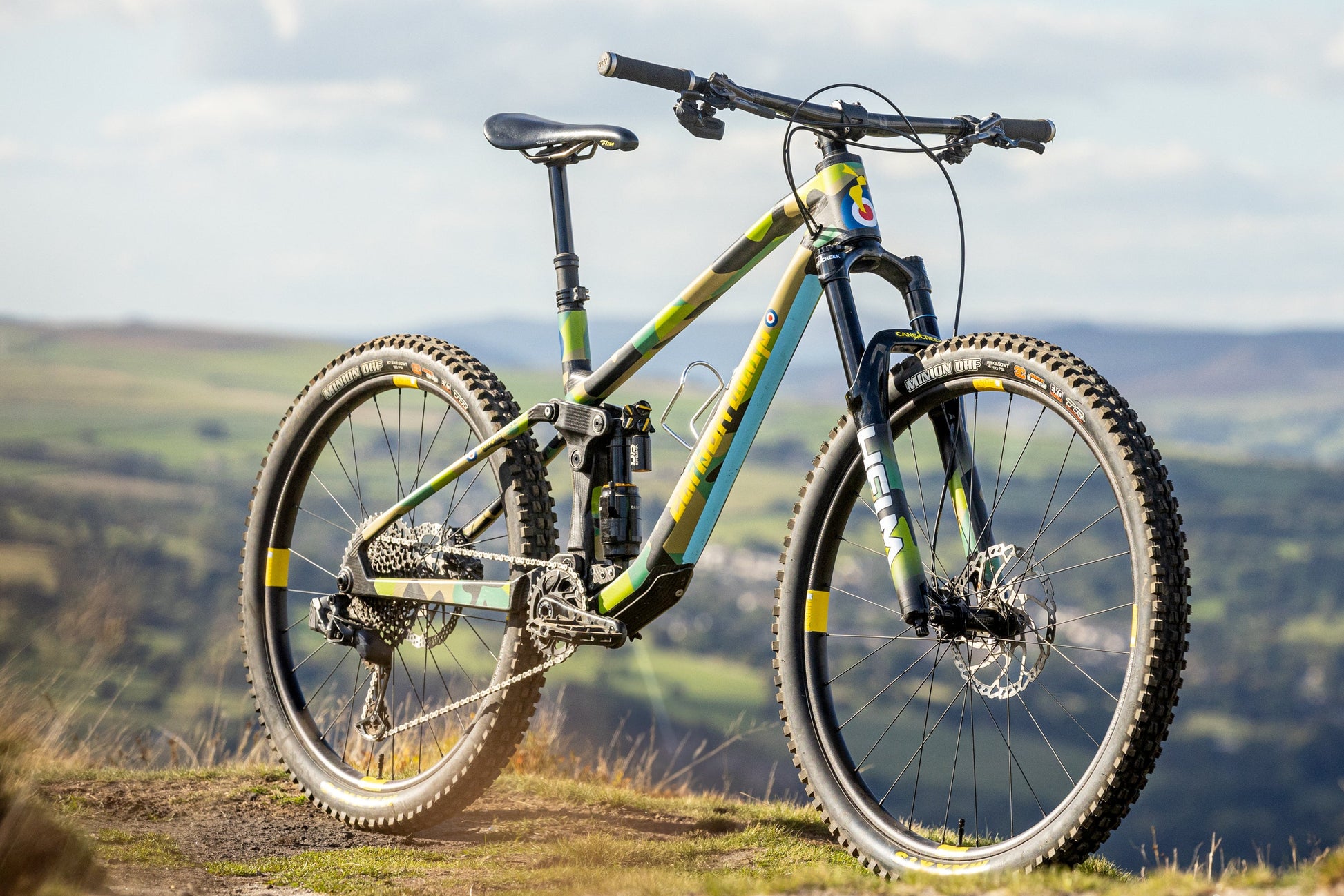

The Compound-150 is our all new mid-travel carbon fibre frame which can be run either as a full 29er or Mullet. It’s designed to be built into a lightweight trail bike that is robust enough to take on the most technical features. With 150mm of plush and progressive rear travel, combined with a strong and stiff carbon frame that is hand made in our workshop in Leeds.

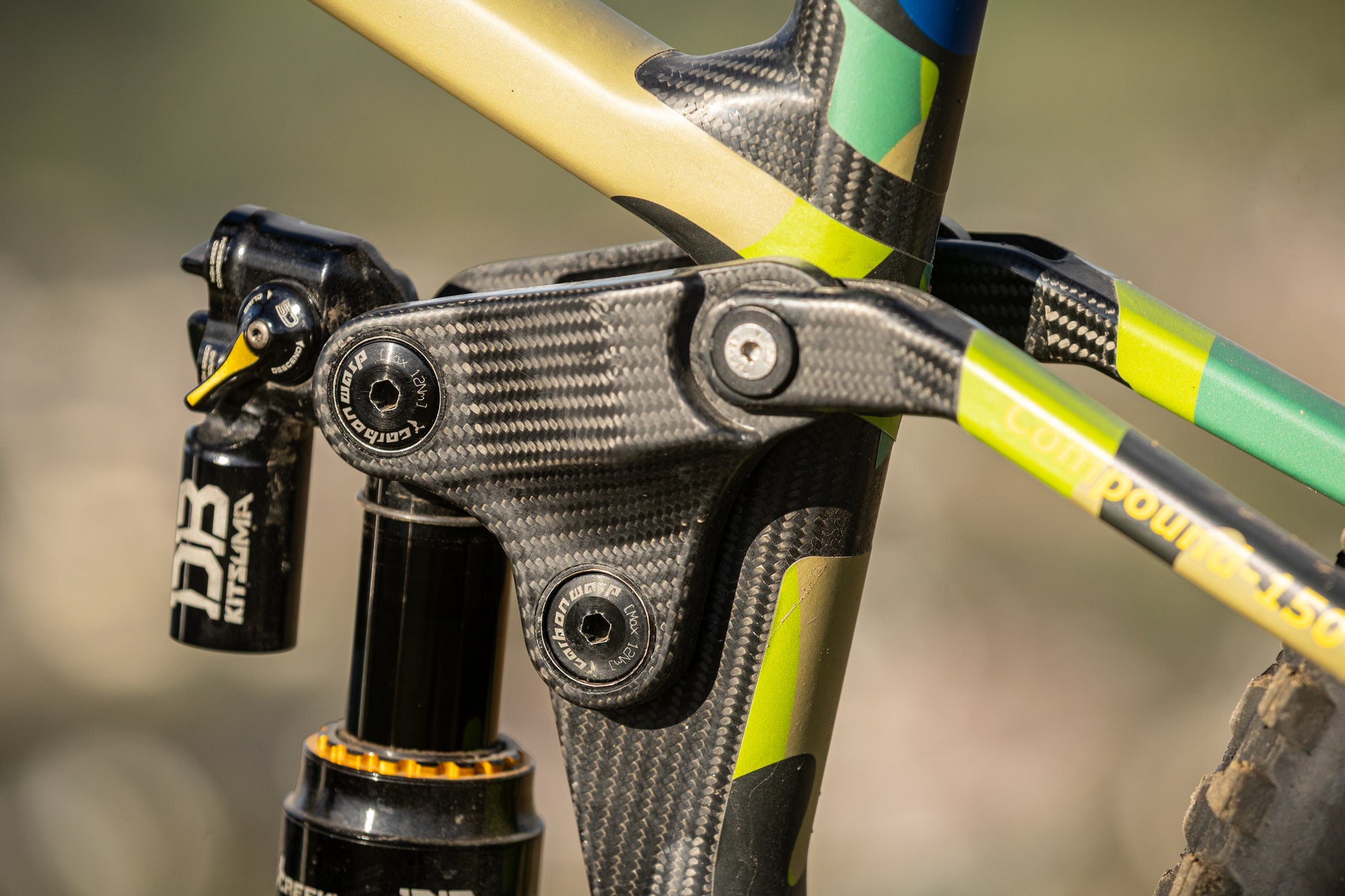

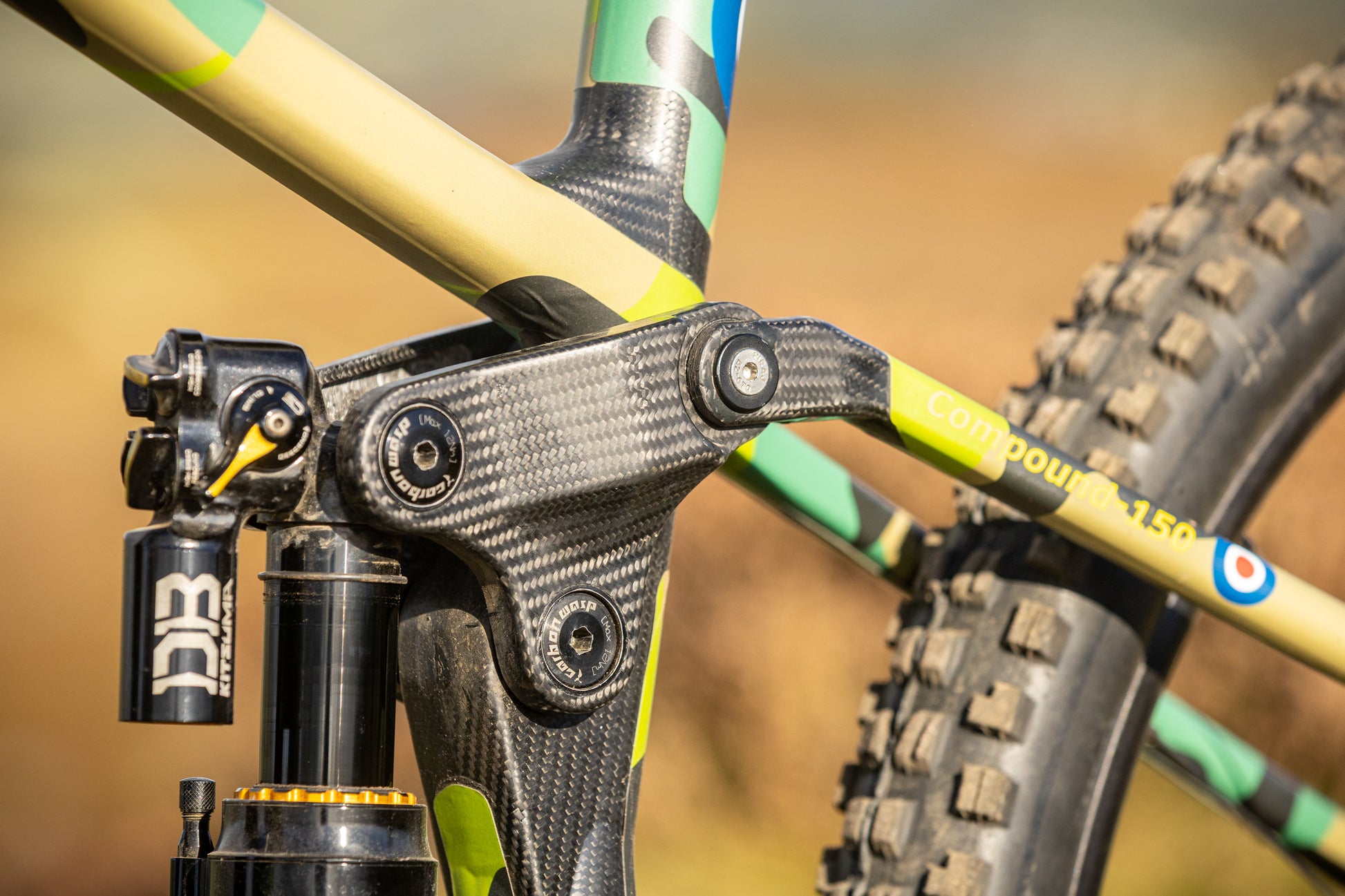

We've refined the carbon lay up over years of development and invested in precision metal tooling to improve the finish and reduce manufacturing time. We use a mix of high quality pre-preg carbon fibres sourced in the UK so we can keep a tight control over quality and reduce leadtimes. The front-triangle, rear-swingarm and carbon linkage are each moulded as a single piece to increase stiffness and lower weight.

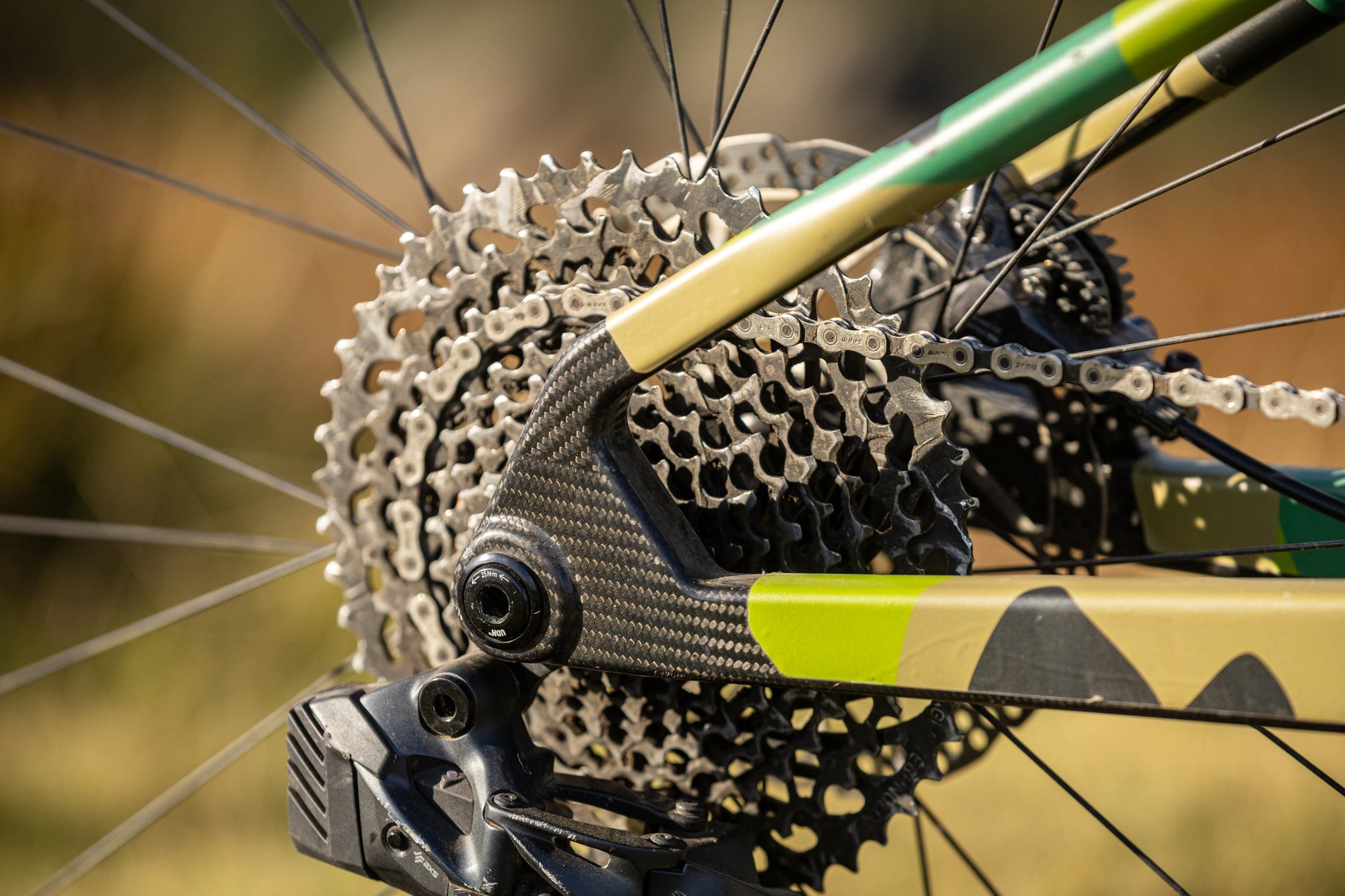

The frames utilise fully sealed cartridge bearings to make the frame Yorkshire proof with a familiar flex pivot at the rear dropout to help reduce weight and complexity.

The Compound-150 features

• Downtube storage
• Dropper post insertion >250mm
• ISCG'05 mounts
• BSA threaded BB shell (73mm width)
• Internal cable routing (but not as far as the headset, we're not savages)
• Boost 148mm x 12mm rear axle
• UDH rear mech hanger
• Clearance for 2.6” tyres
• Clearance for 38T chainring (36T for 435mm stays)
• Lifetime repair or replace warranty.

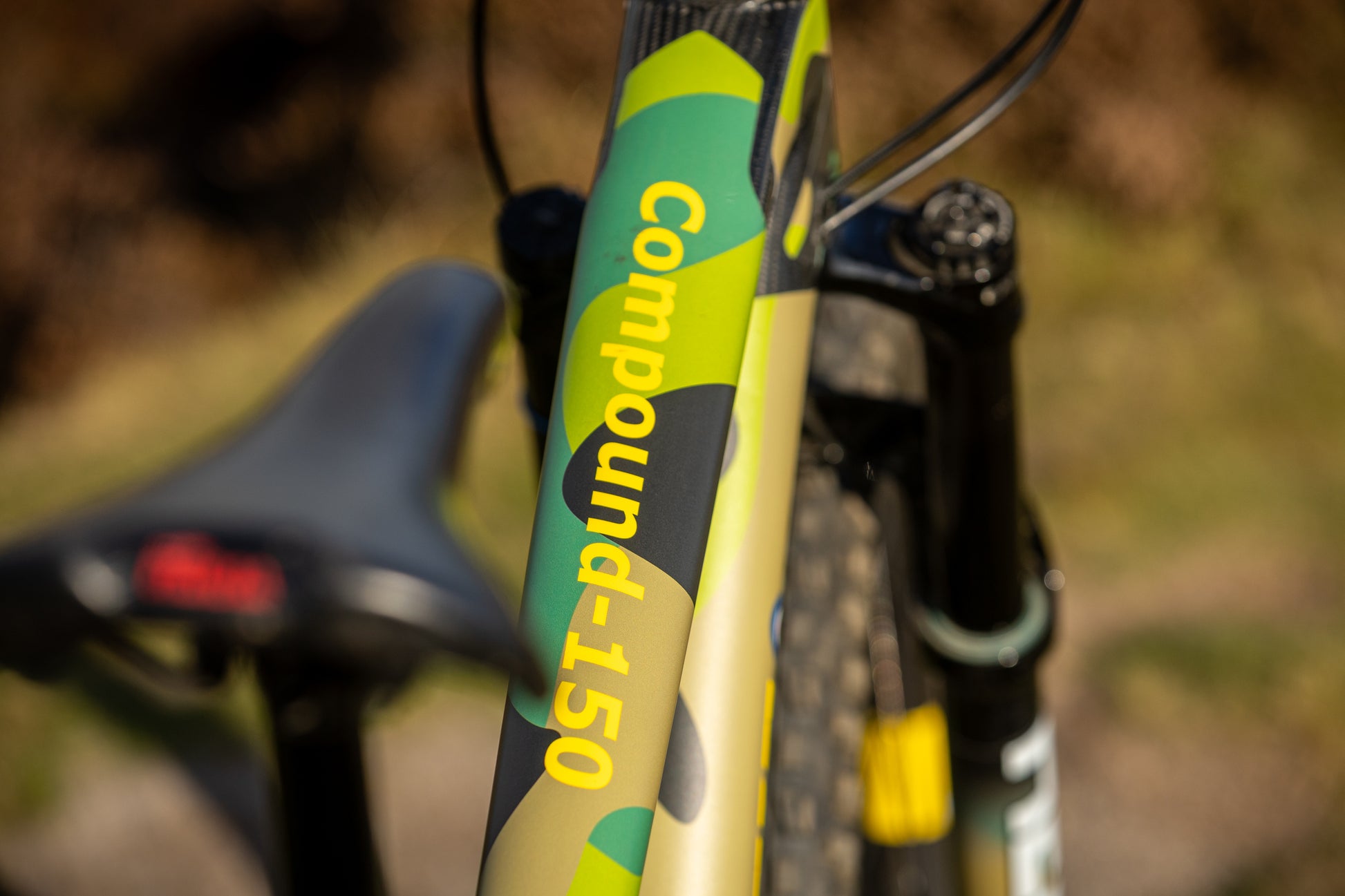

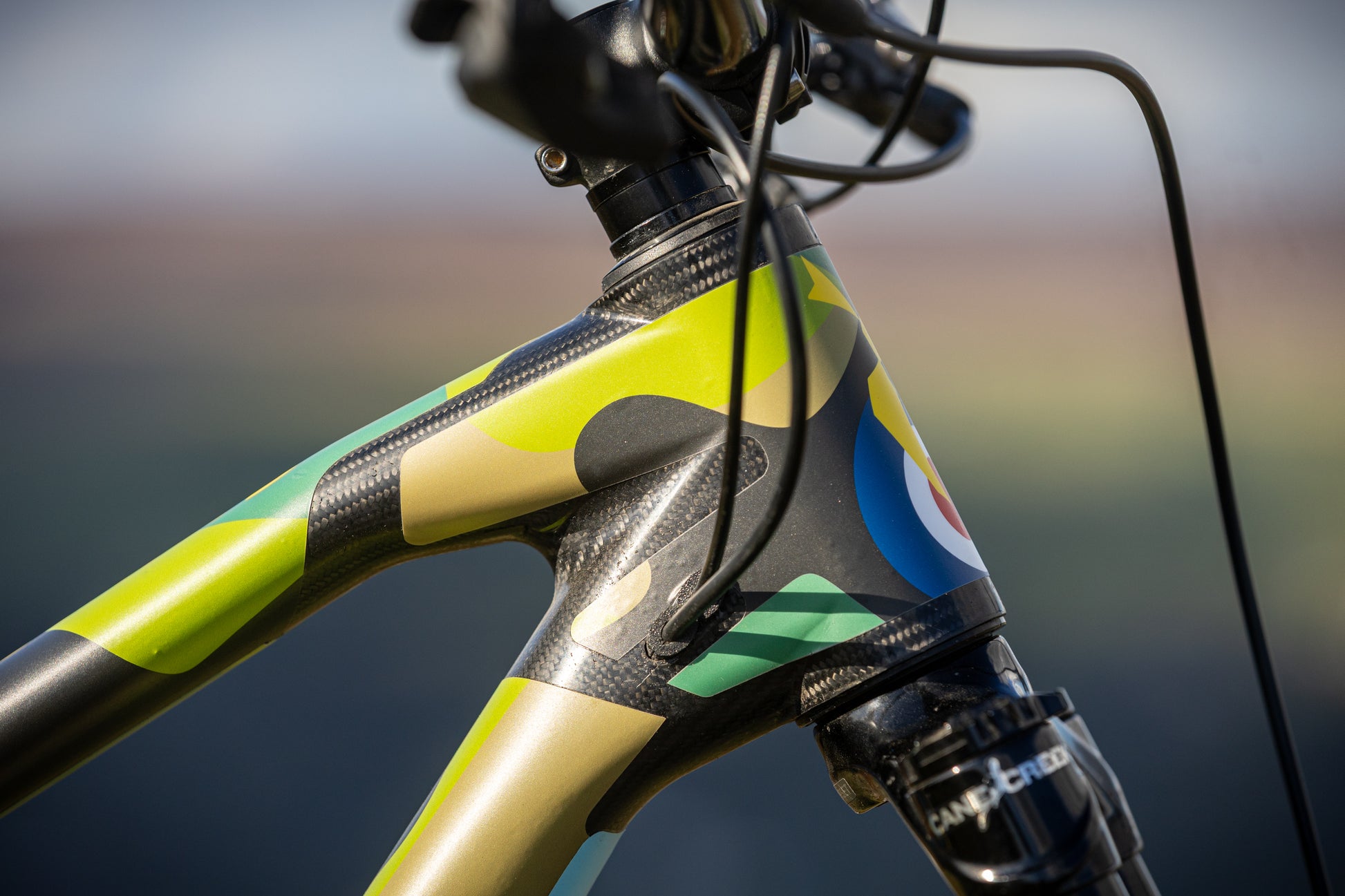

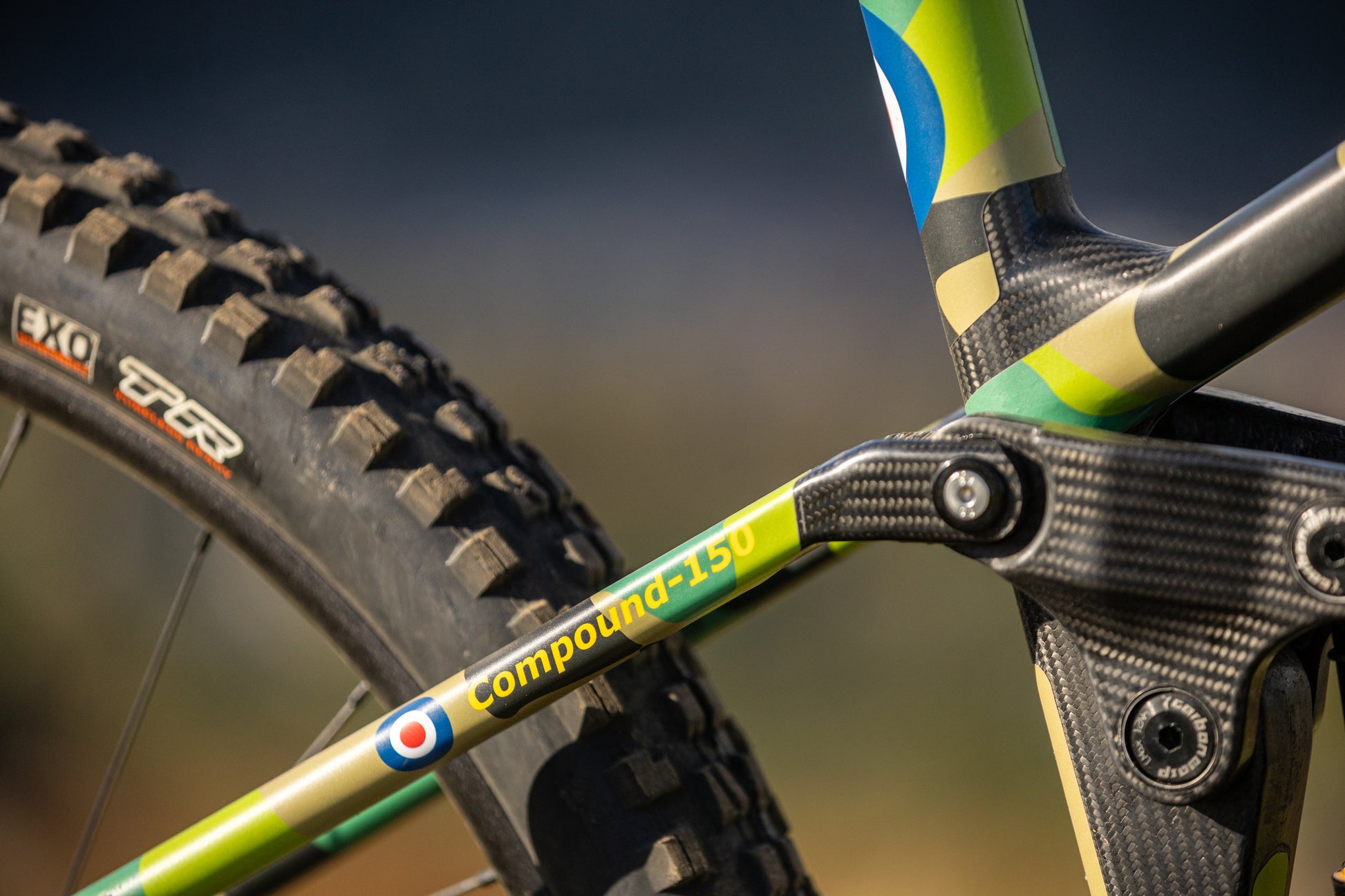

The Compound-150 is not painted - as with all our frames, we supply the frame with a coloured wrap, which leaves just enough carbon weave on show for you to see our working, but protects the frame from damage. The wrap comes in any one-colour as standard at no extra charge and we can do any level of full-colour complexity with patterns/pictures for an additional design charge.

Frame Specs:

• Headtube: 56/44 (can be made as 56/56 for anglesets)
• UDH compatible
• Rear Hub: 148mm x12mm

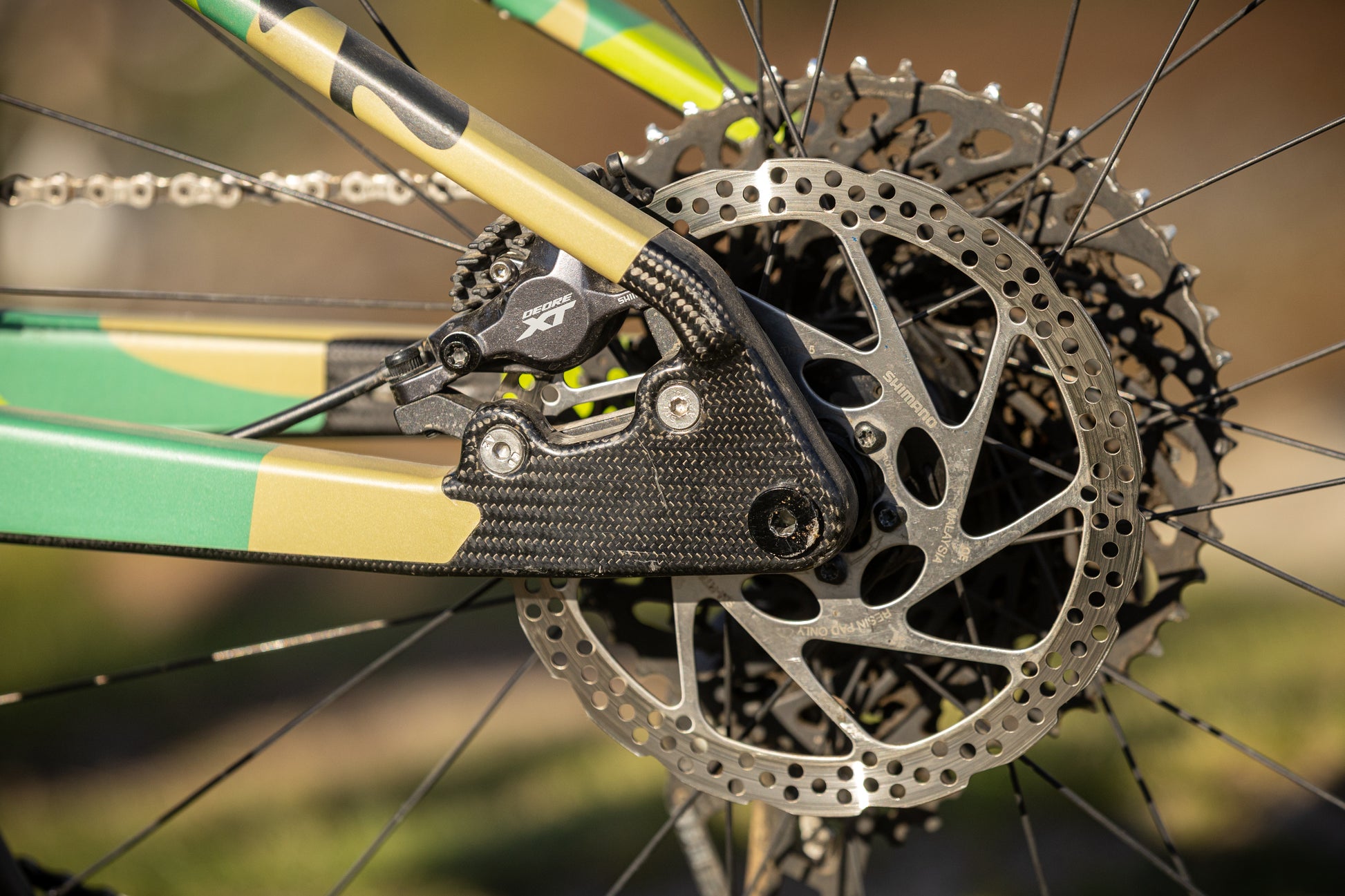

• Rear Brake Mount: IS
• Seat Post: 30.9mm
• Seat Collar: 34.9mm
• Rear Shock: 205x62.5mm Trunnion
