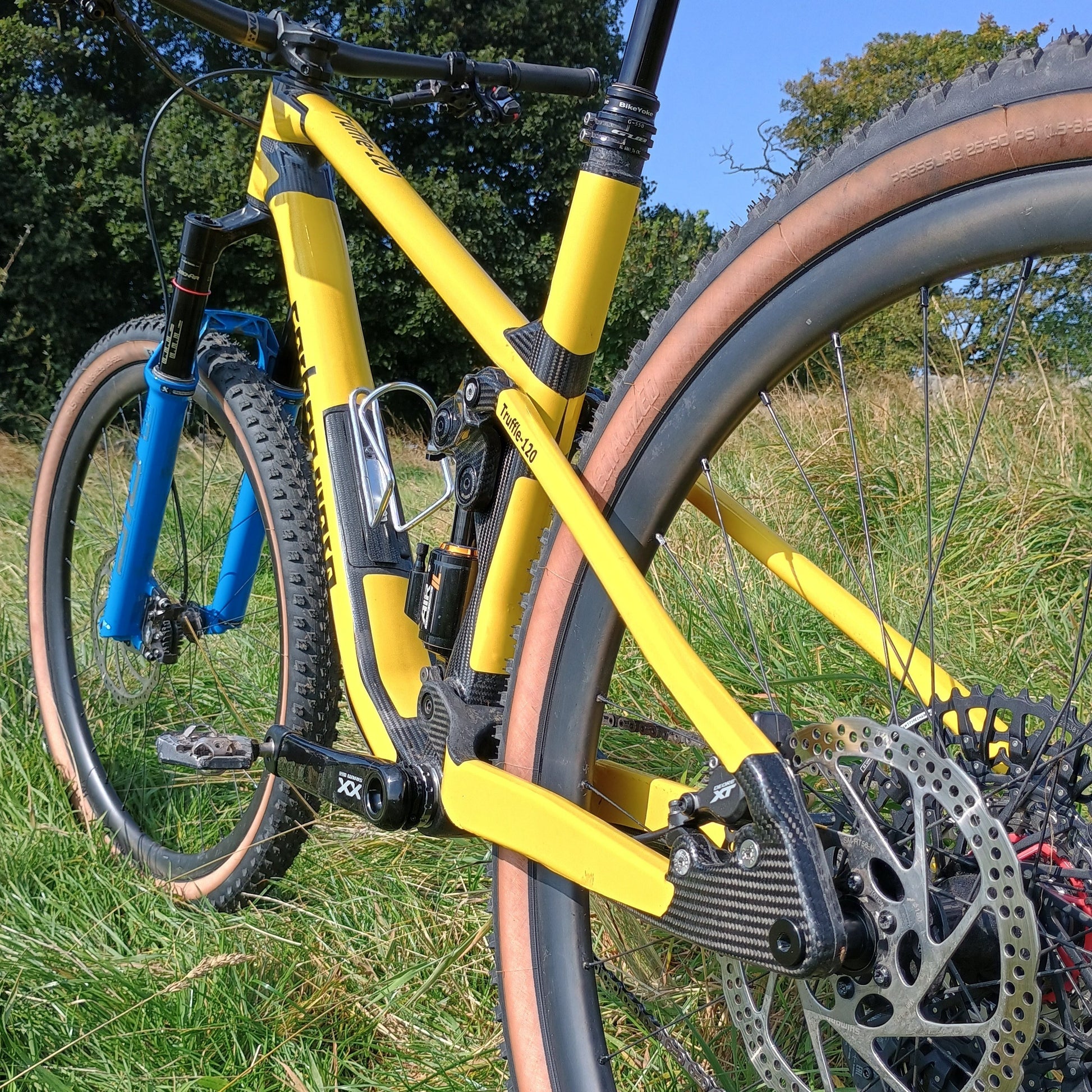

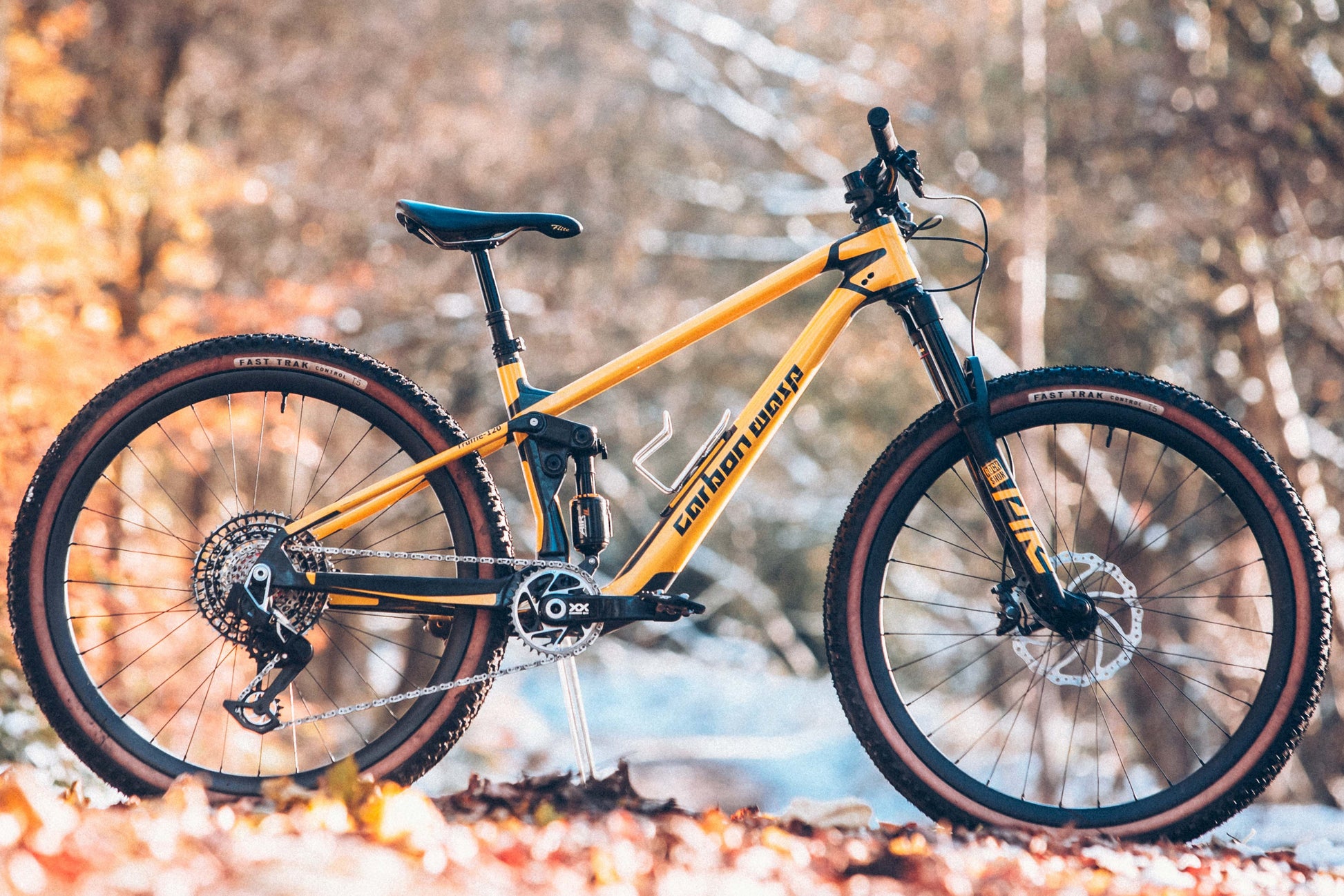

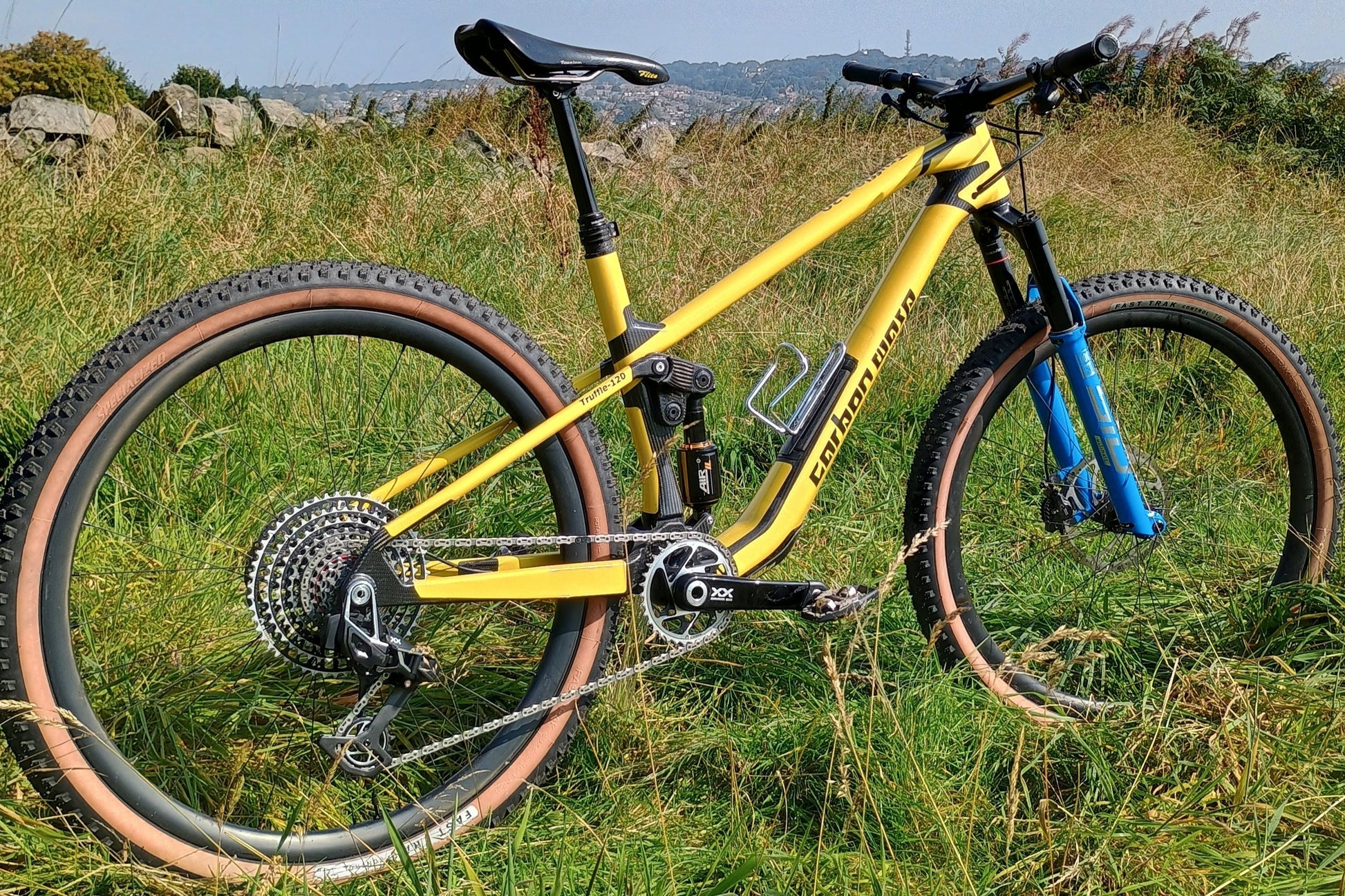

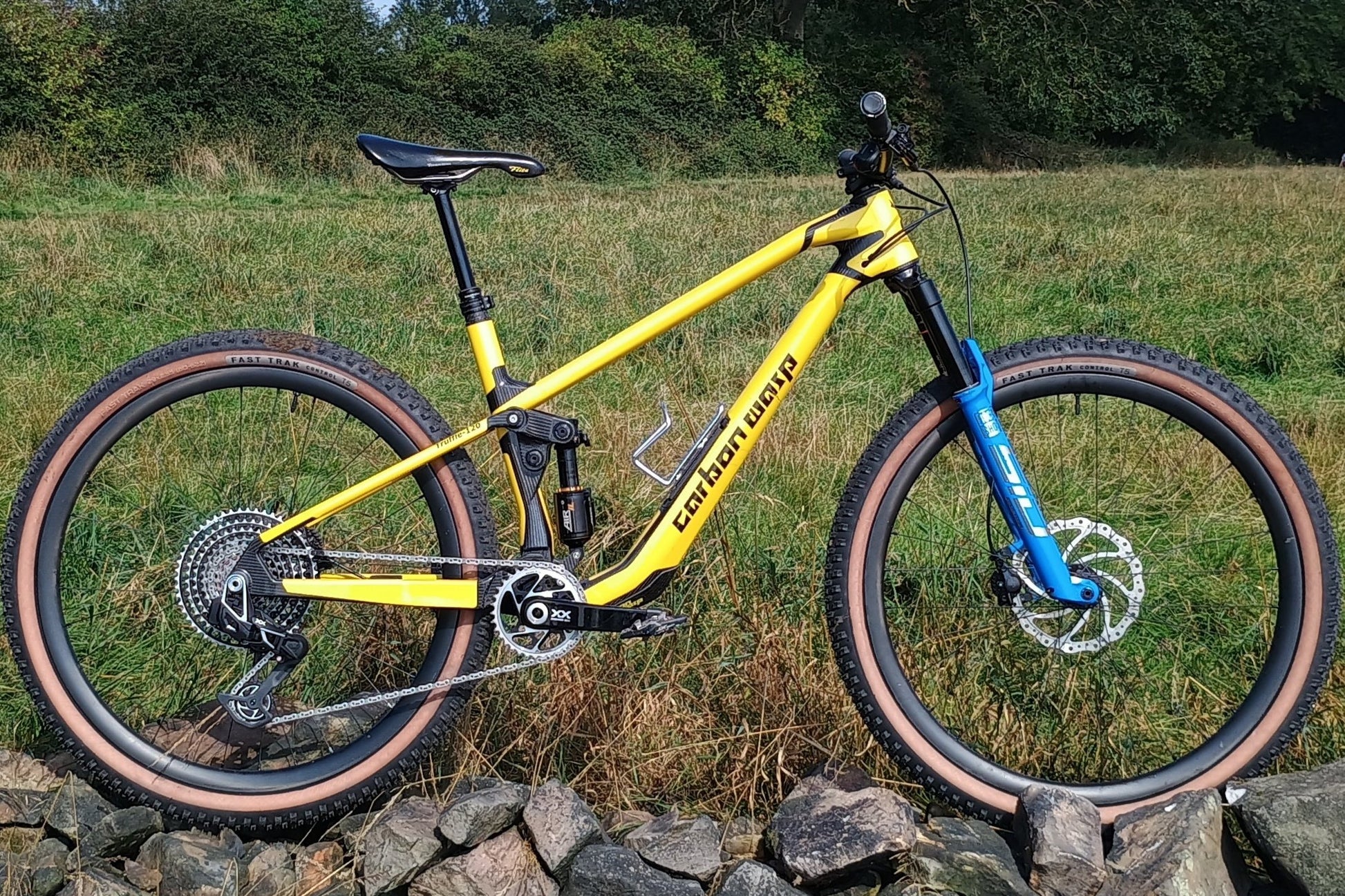

The Carbon Wasp Truffle, a 120mm 29er XC/trail/downcountry bike from Yorkshire.
Our new full suspension frame is designed to be built into a bike for all occasions. With 120mm of plush and progressive rear travel, combined with a strong and stiff carbon frame to get you efficiently to the top of the trails so you can get rowdy on the way back down.

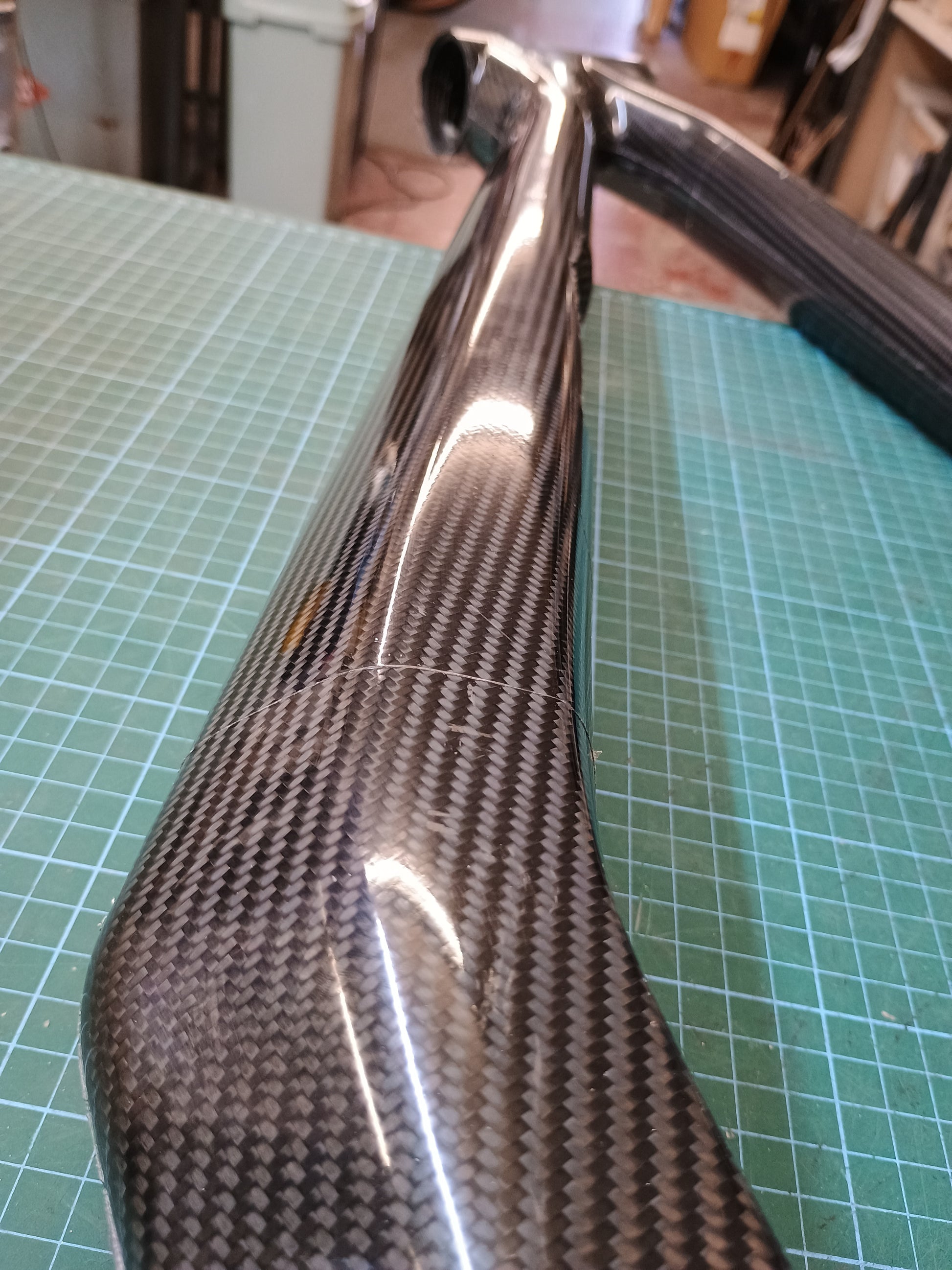

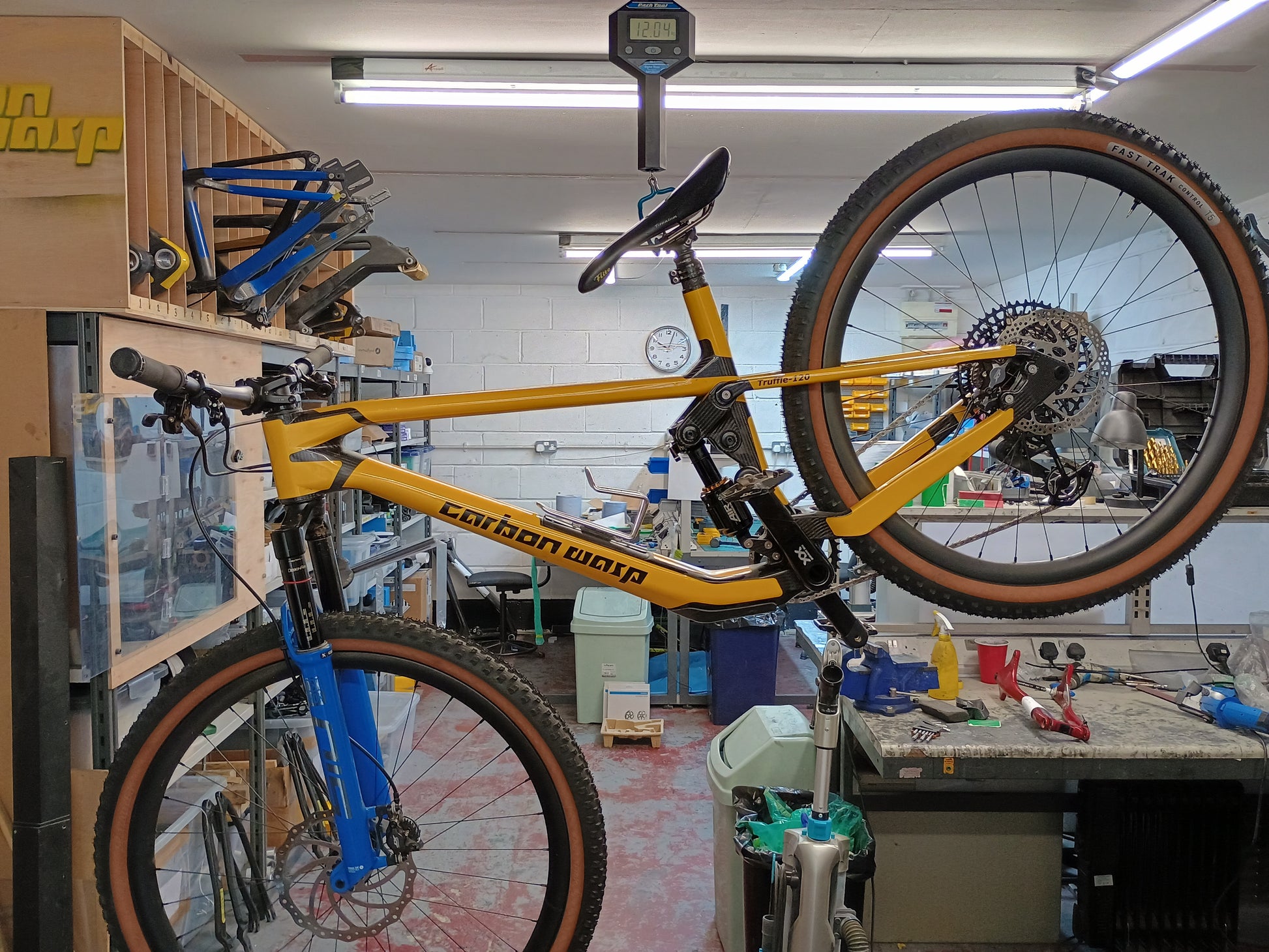

All our frames are made by hand in our workshop in Leeds, UK, using the finest pre-preg carbon fibre.
Featuring:
-

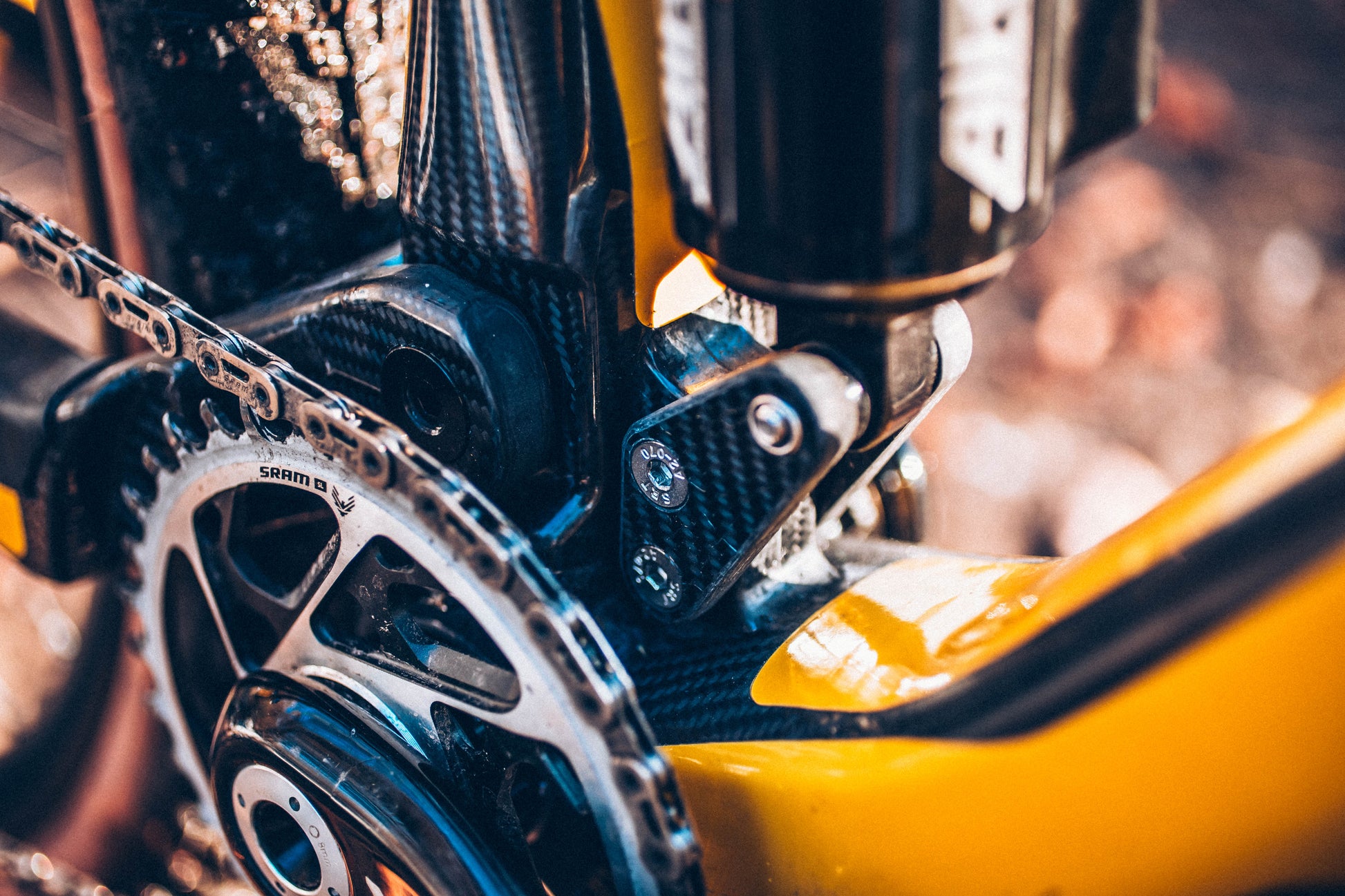

BSA threaded bottom bracket (not a sniff of press-fit around here...)
-
30.9mm internal seatpost - to fit most common dropper posts
-

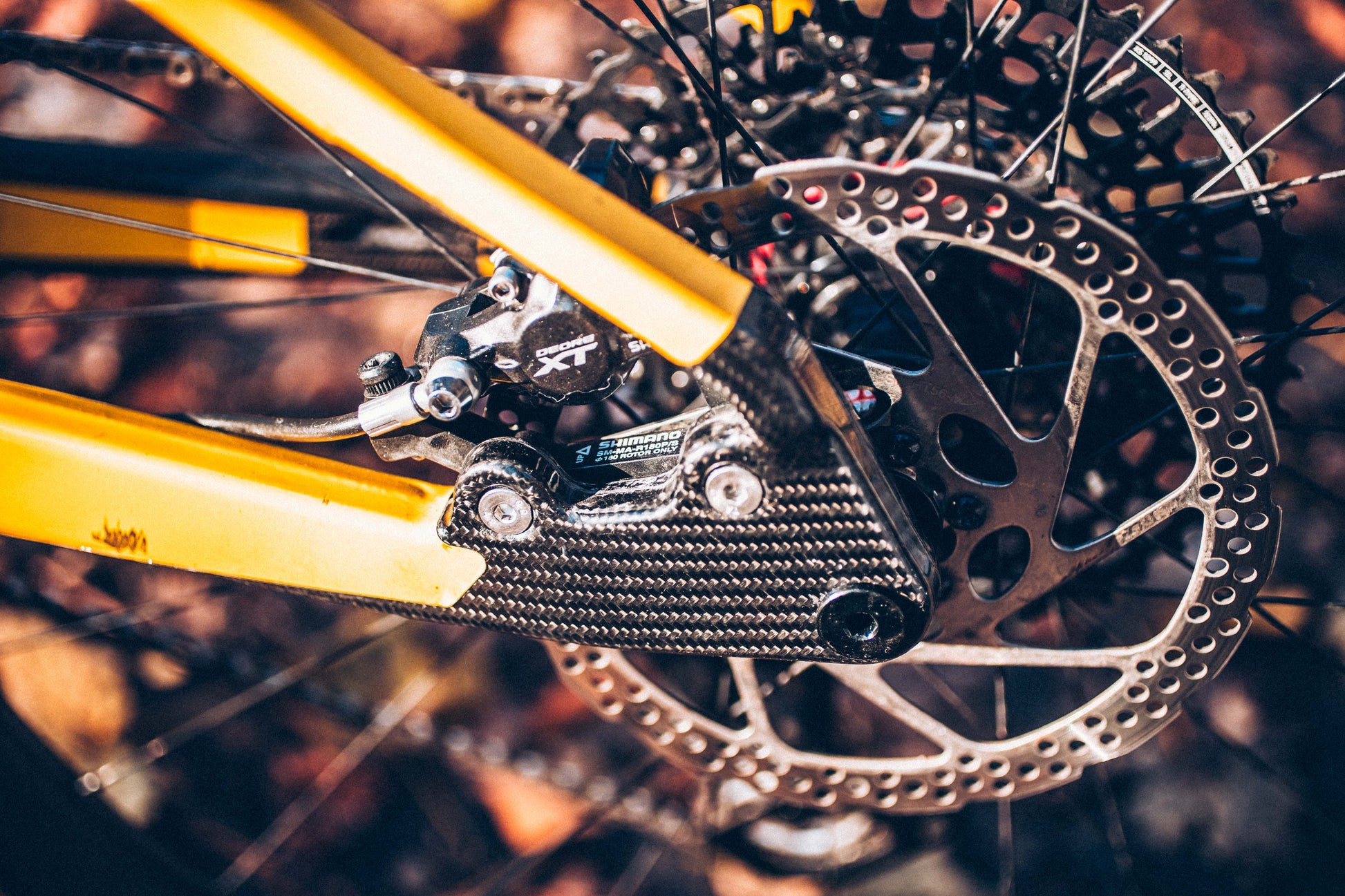

Boost 148 rear dropouts - Fitting all modern wheelsets.
-

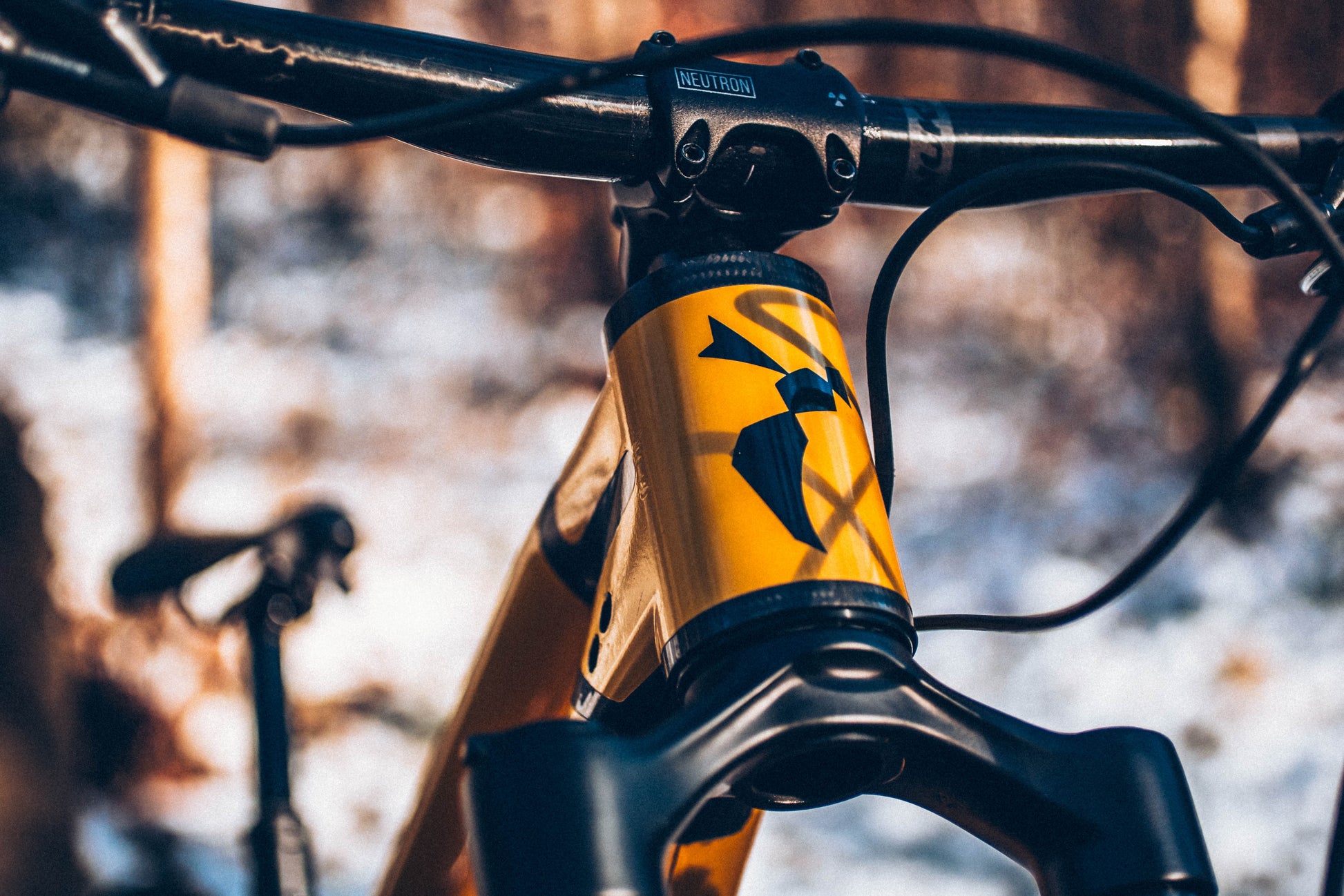

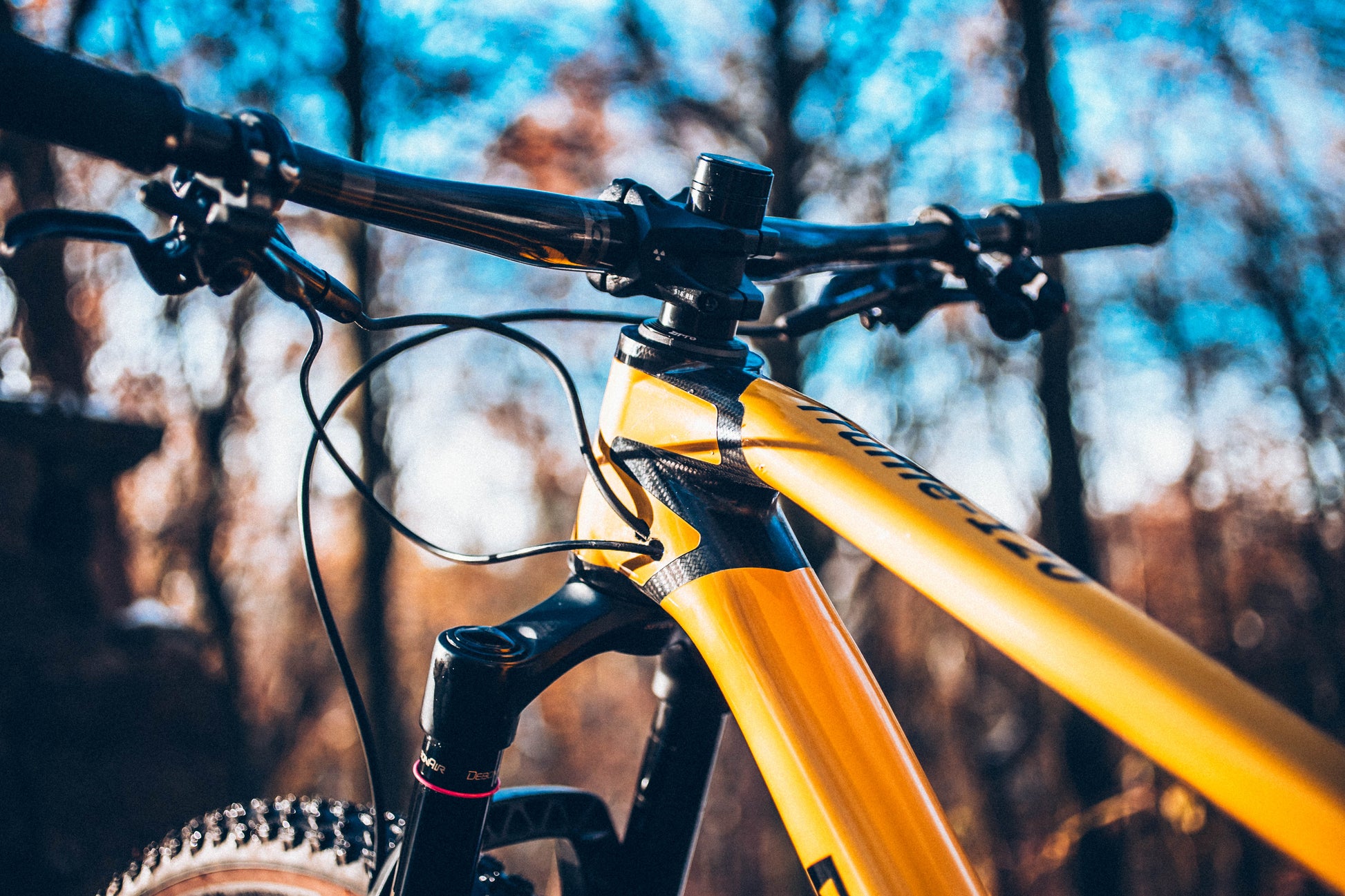

Integrated headset cups - for clean looks and lower stack options
-
Full internal cable routing - protecting cables from the elements (our new ‘Swearbox’ routing system makes installation a breeze)
-
Internal downtube lunchbox storage - so you’re never more than an arm’s length from a pork pie* [*other savoury snacks are available]
Read the MBR.co.uk review here!
And another review from BikePerfect - including a coveted "recommends" award
|

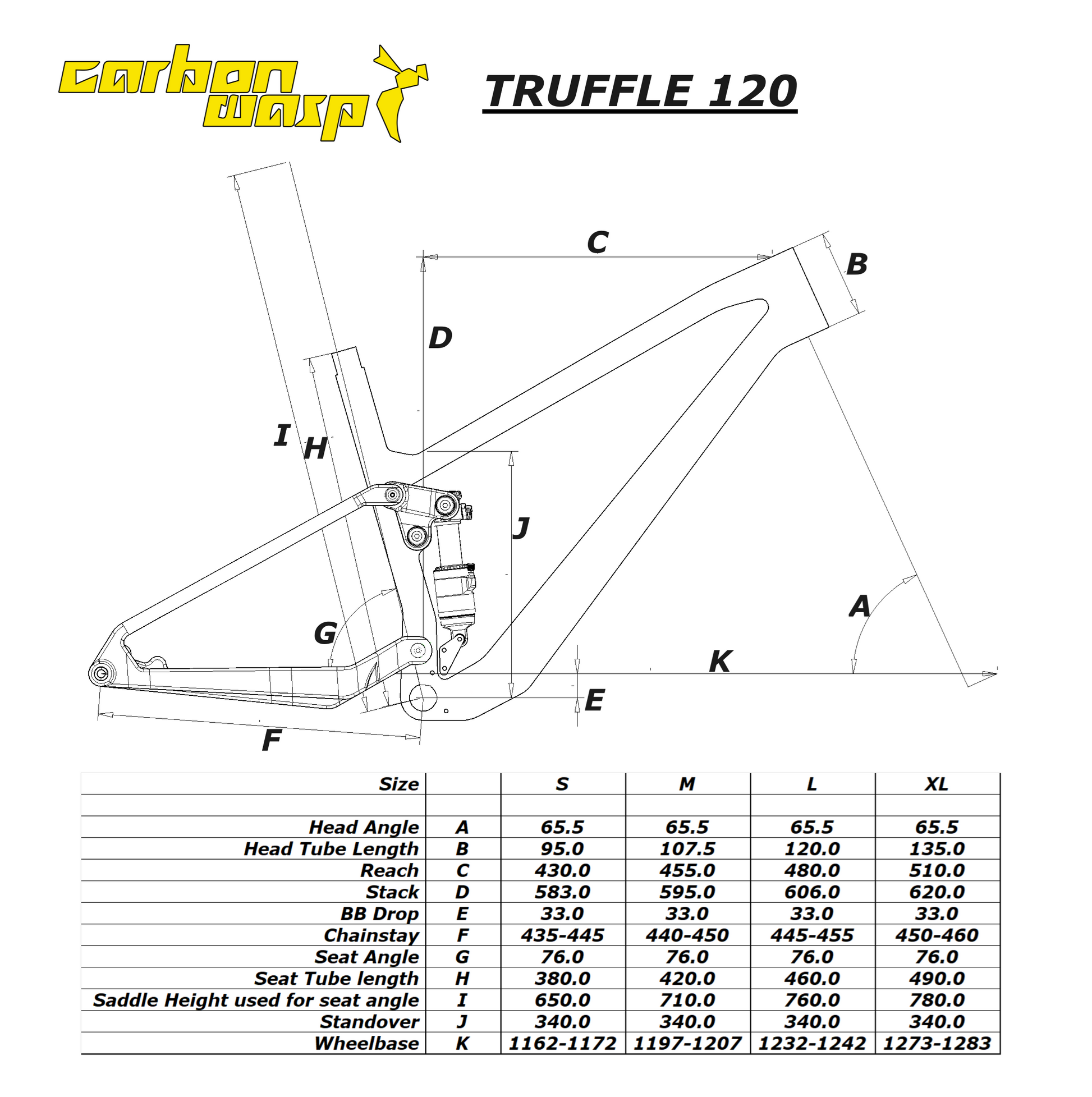

S |
M |
L |
XL |
Rear Travel | 120 | 120 |
120 |
120 |
Head Angle (deg's) | 65.5 | 65.5 |
65.5 |
65.5 |
Seat Angle* (deg's) | 76 | 76 |
76 |
76 |
Seat Tube (Centre to top) | 380 | 420 |
460 |
490 |
Dropper Insertion | 200 | 220 |
250 |
280 |
Reach | 430 | 455 |
480 |
510 |
Stack | 610 | 620 |
630 |
640 |
BB Drop | 33 | 33 |
33 |
33 |
Chainstay | 435 | 435 |
440 |
440 |
Wheelbase | 1177 | 1200 |
1227 |
1257 |
*Saddle height used to measure seat angle.
Headset (Top) | IS 42 28.6 |
Headset (Bottom) |
IS 52 40.0 |
Seatpost |
30.9mm |
Seat Clamp | 34.9mm |
Bottom Bracket | BSA Threaded (73mm) |
Rear Wheel | Boost 148 x 12 |
Frame Weight | 2.1kg (W/out Shock) |
Shock Length |
185 x 50mm Trunion |
Recommended Fork | 120 - 140mm travel |
Maximum Tyre Size | 2.4" |
