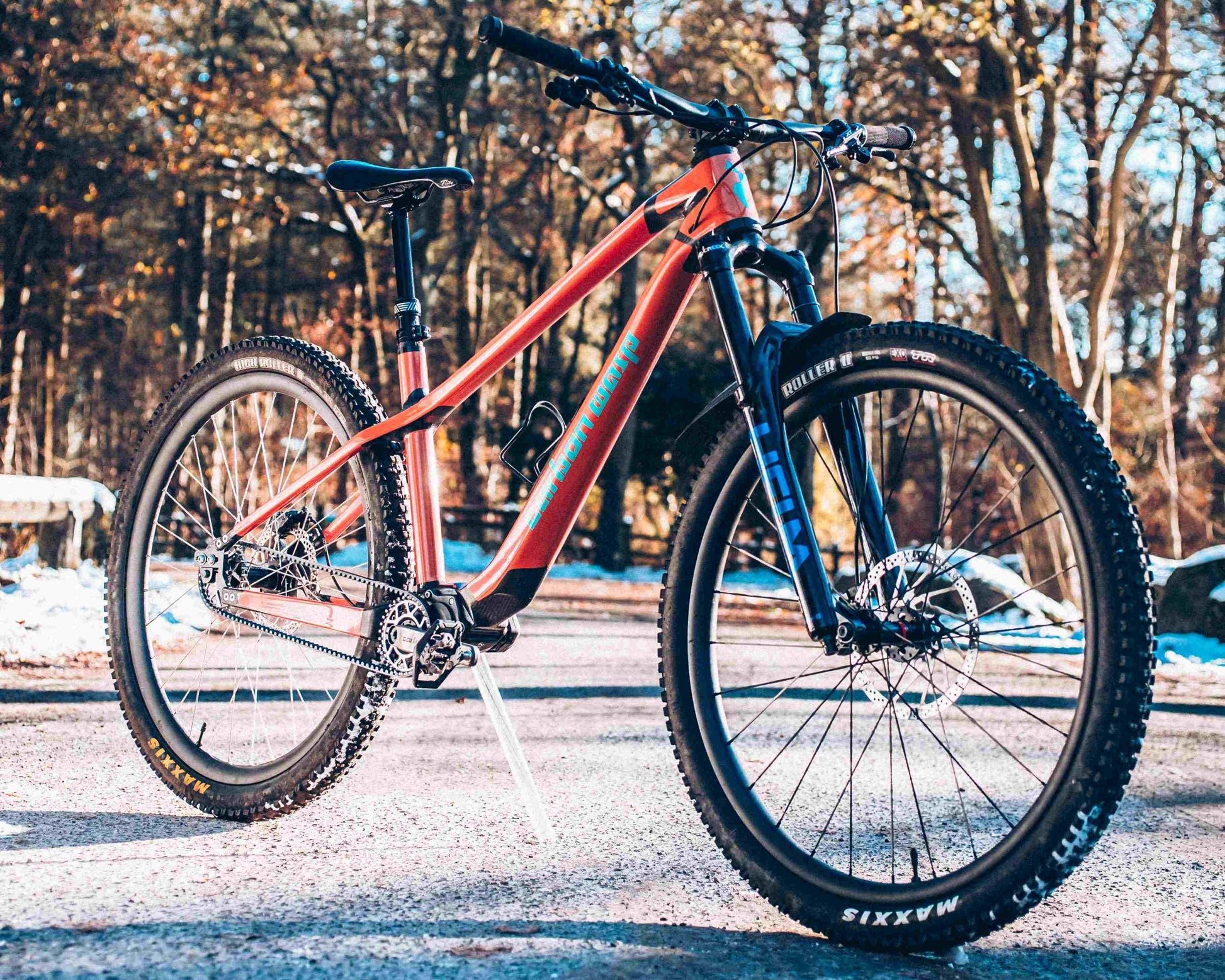

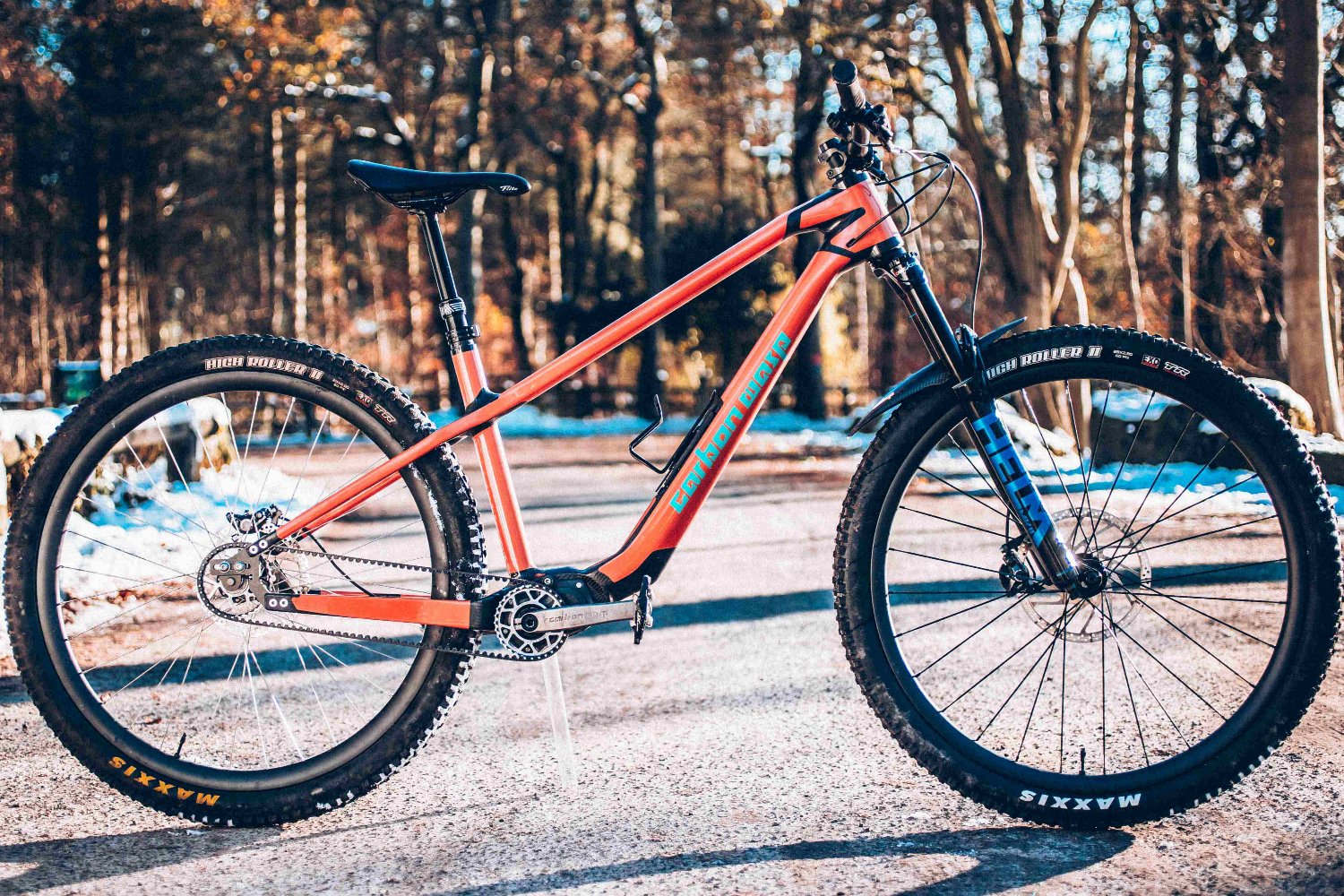

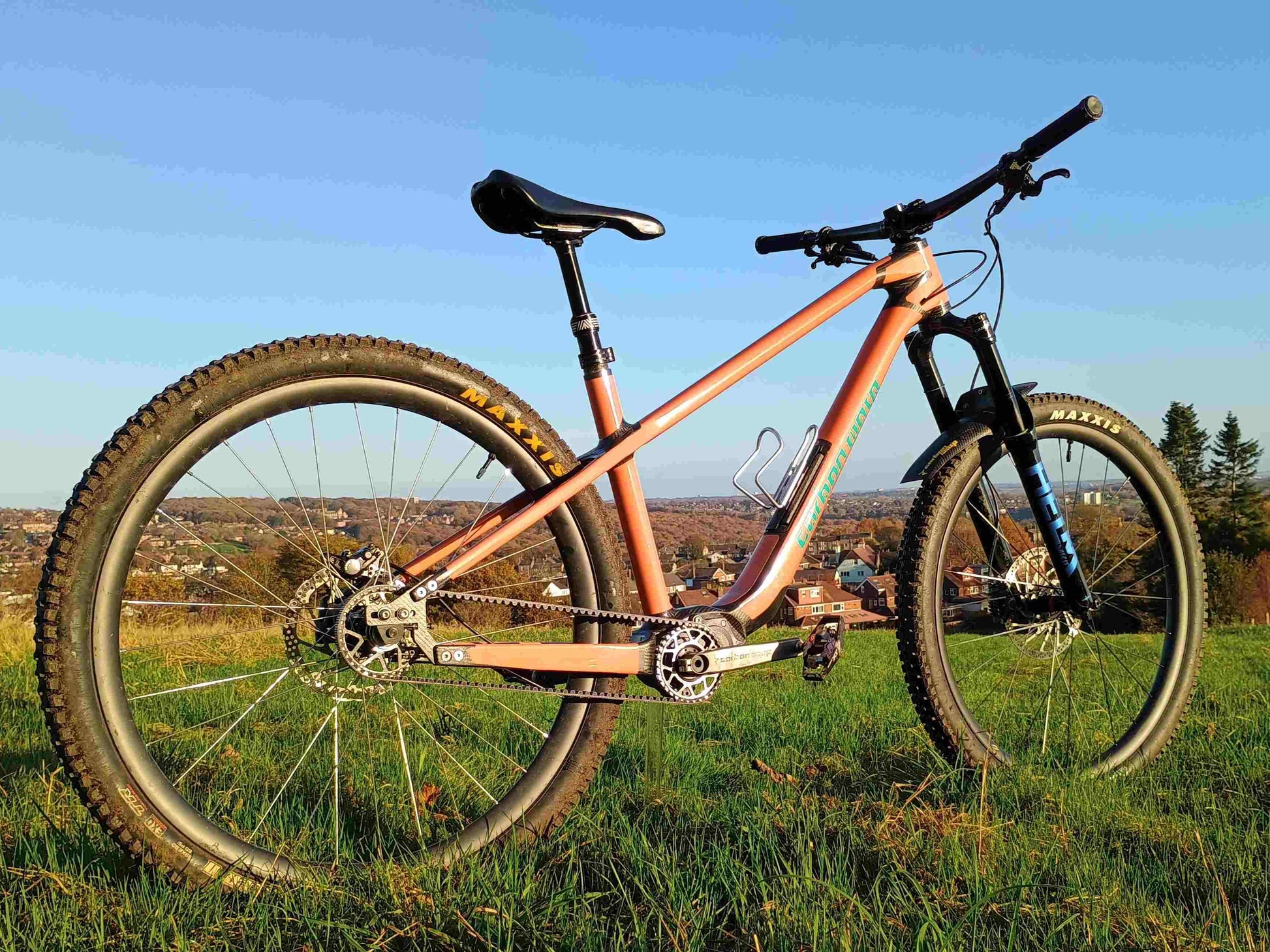

Carbon Gearbox Hardtail

Handmade in Yorkshire this is the ultimate winter hardtail and has been a work-in-progress for several years. This is a full carbon fibre frame, designed to stand up to the worst conditions you can throw at it and still come back for more.

We've allowed for plenty of customisation in the design and we fit the low maintenance gearbox system so that this frame can be your loyal companion on bikepacking treks across the world, or a short thrash in the local woods and anything in between.

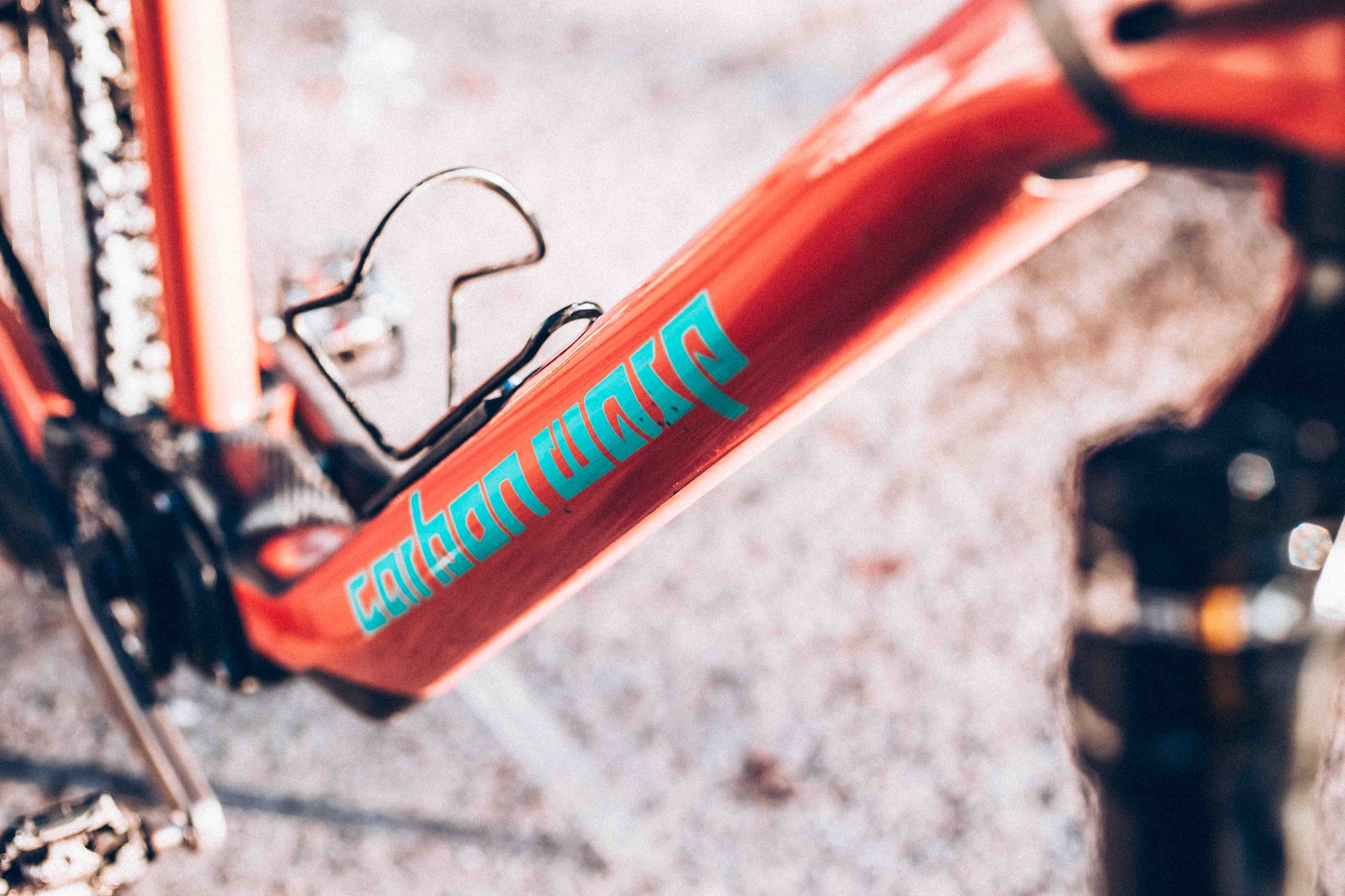

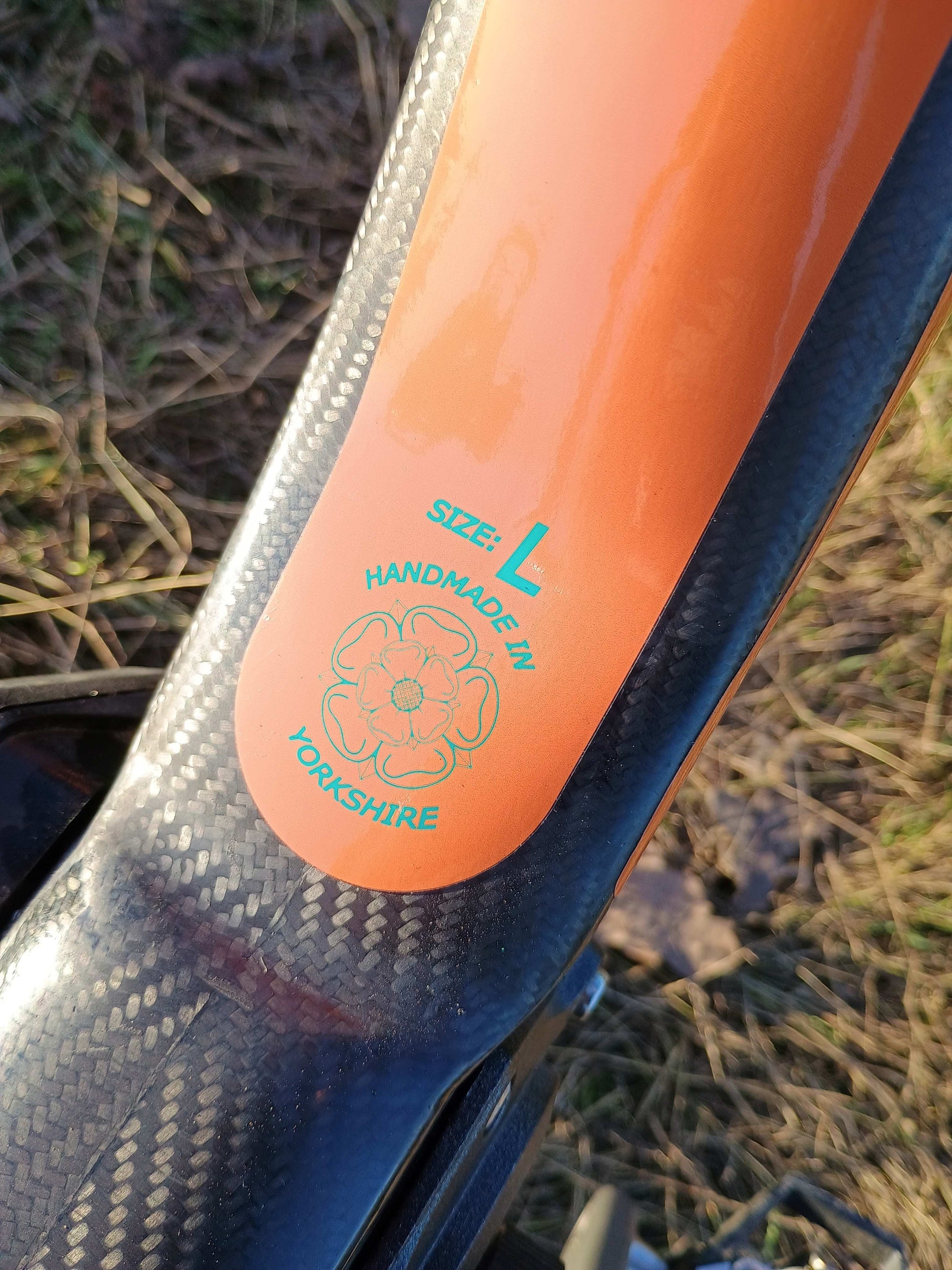

As with all our frames, we don't paint them, instead we supply a laminated protective wrap, which is available in any colour - it's entirely your choice. Any single colour is included, with unlimited customisation, colours and patterns available for an extra charge (contact us for more details).

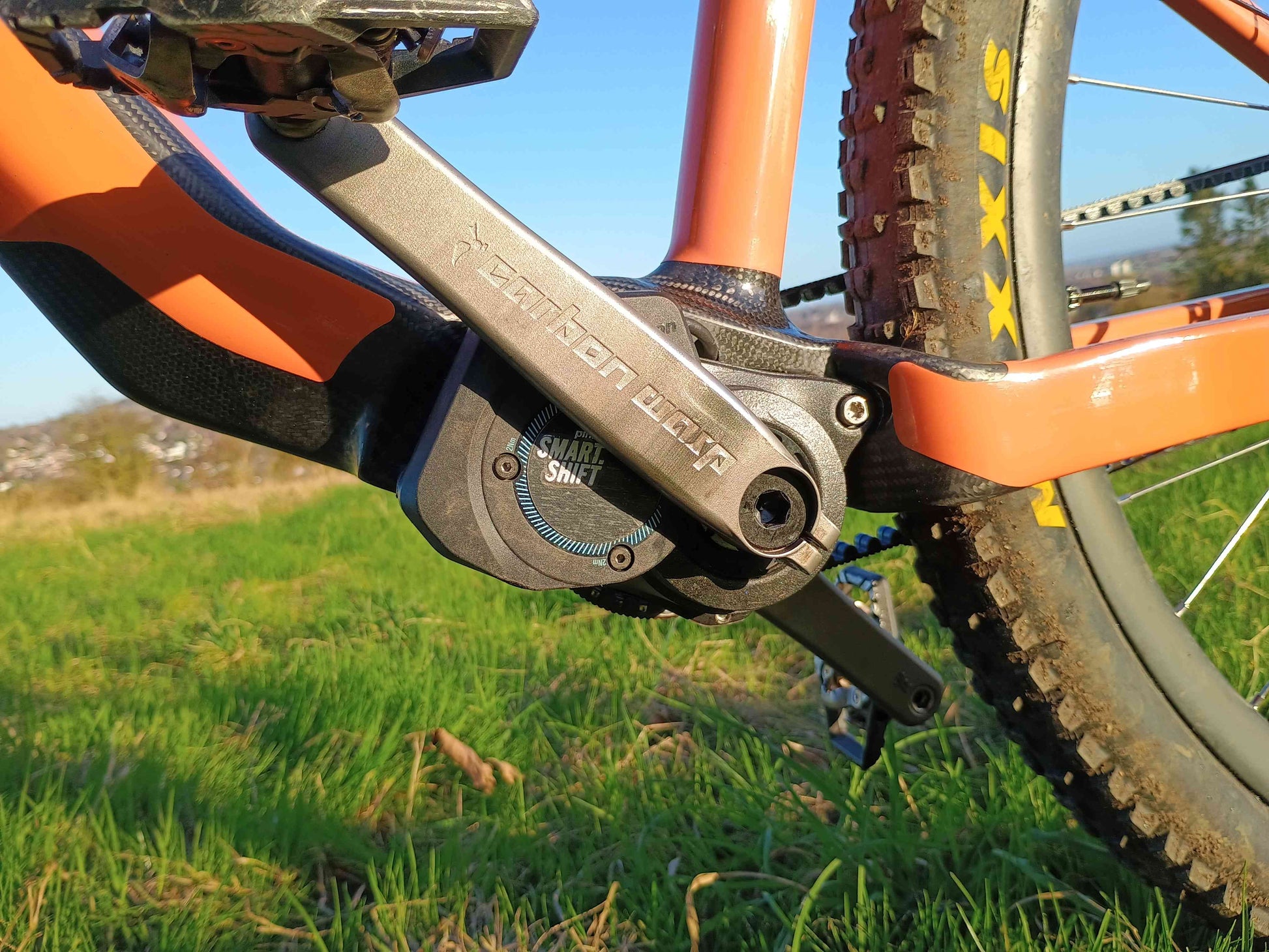

• Compatible with Effigear and Pinion P-Line and C-Line gearboxes (including Smart Shift)
• Internal cable routing
• Downtube internal storage (with access to Pinion SmartShift battery)

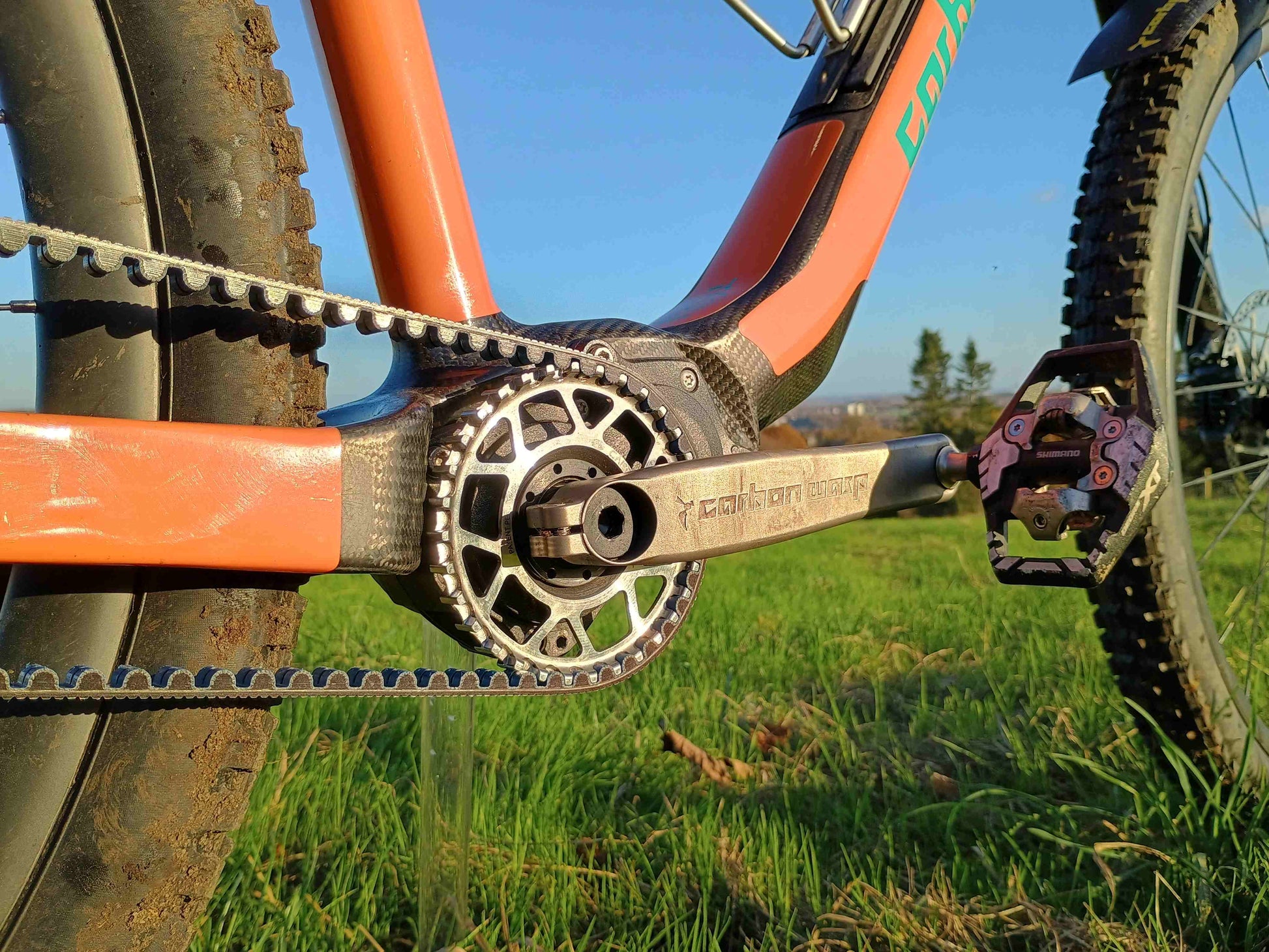

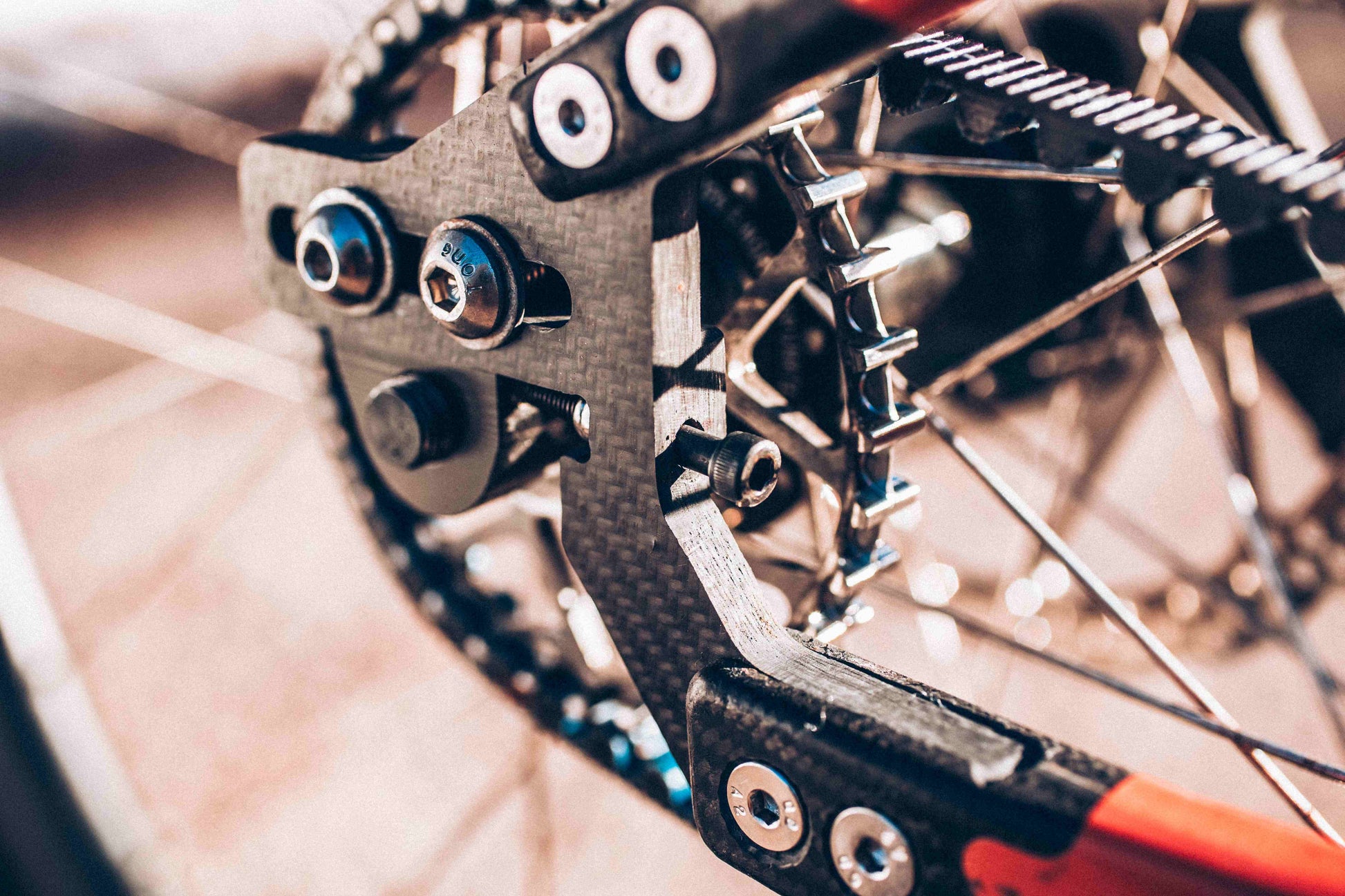

• Stays can be split for compatibility with belt drive

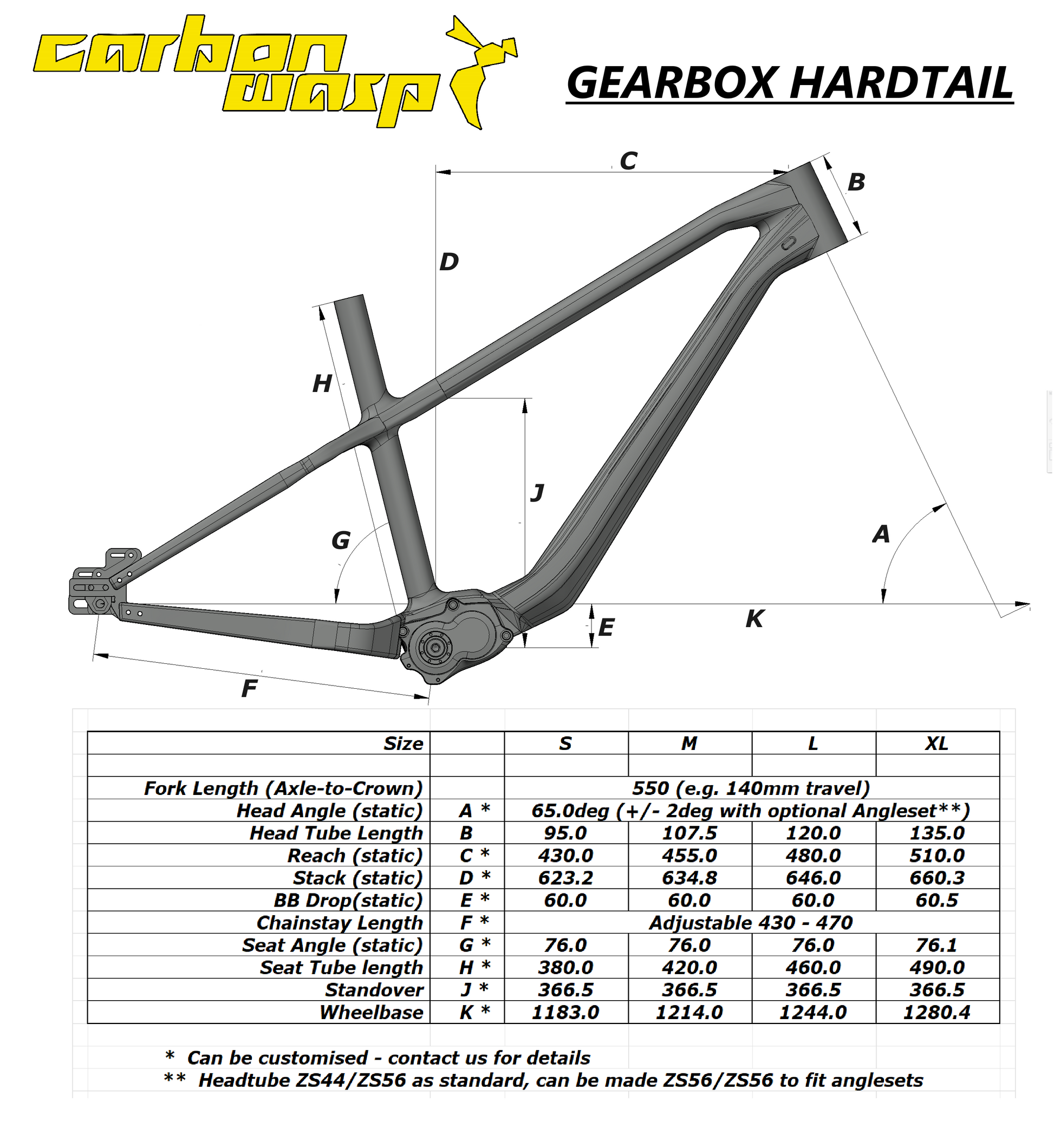

• Geometry can be customised, contact us for details

Seat post:          30.9mm

Seat Collar:        34.9mm

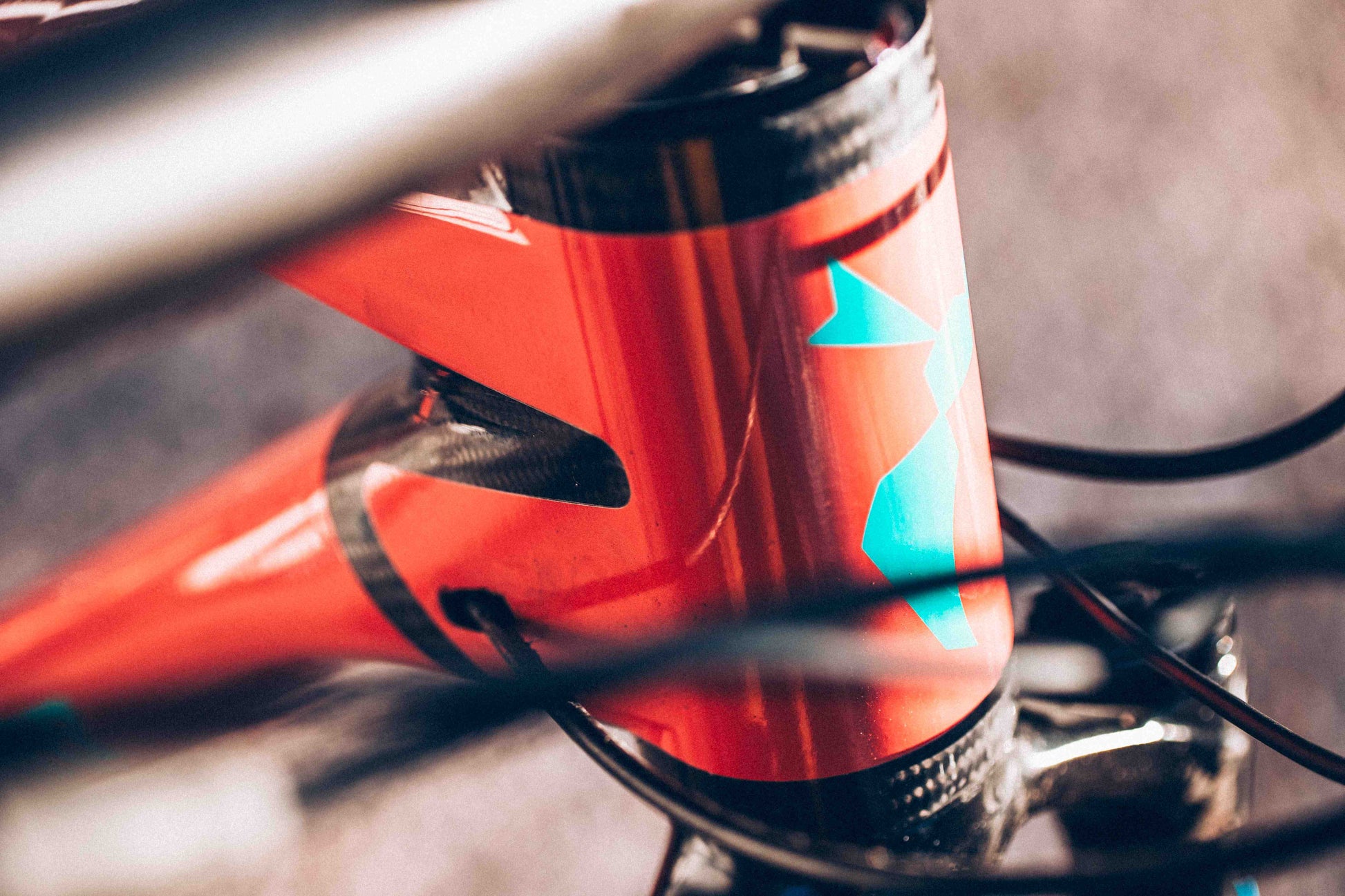

Headset:            ZS44 / ZS56 standard (can be made ZS56/ZS56)

Rear Hub:          12mm x 148mm width

Tyre Clearance:  Up to 29 x 3.0” (Stays internal width = 90mm at tyre)

Disk Brake:         Rear: IS mount, will fit any rotor size

Available as frame-only (if you already have a gearbox), or frame and gearbox. We can also supply drivechain components as necessary or provide a full custom build - contact us for details or a quote.
